1137BSB
For Charter From Direct Owners
Reference | 1137BSB |
Type | Tug - Twin Screw |
Class | BV Unrestricted |
Build year / place | 2009 / UNITED KINGDOM |
Length (m) | 24 |
Breadth (m) / Depth (m) | 9.5 / 3.25 |
NT (tons) / GT (tons) | / |
Engine(s) power (BHP) | 2200 |
Engine(s) | 2 x Cummins KTA38-M1 |
Location | UK COAST |
Price | POA |
Interested in this vessel?
Please, feel free to contact us at any time.
We remain at your entire disposal.
Detailed Information
General
Built Year & Place | 2009 / UNITED KINGDOM |
Hull Material | Steel |
Flag | CYPRUS |
Class Society and Notation | BV Unrestricted Ice Class IB |
Next DD | |
Next SS | 07/2024 |
Next Annual Survey |
Principle Dimensions
Length Overall (m) | 24 |
Length Between Prep. (m) | 22.7 |
Breadth (m) | 9.5 |
Depth (m) | 3.25 |
Draft (m) | 2.5 |
NT (tons) | |
GT (tons) | |
DWT (tons) |

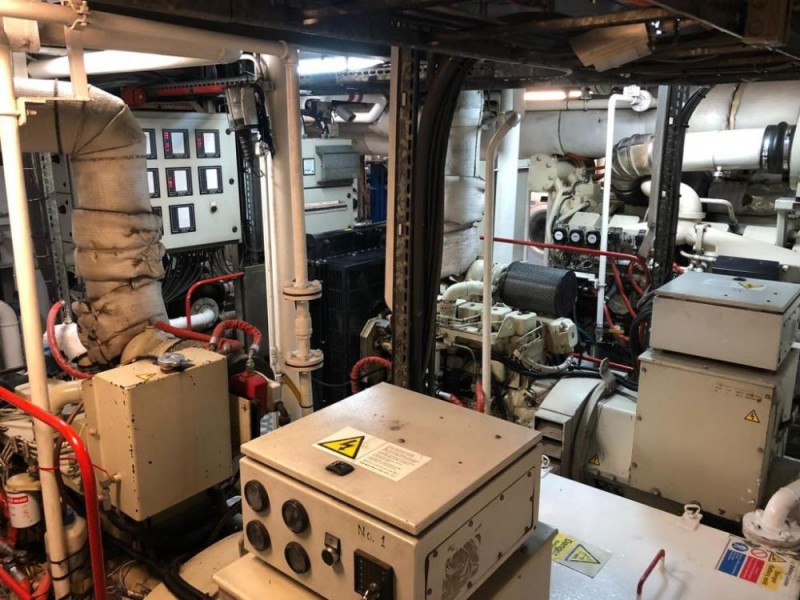

Machinery & Propulsion
Total Power Output (BHP) | 2200 |
Main Engine(s) | 2 x Cummins KTA38-M1 |
Main Propulsion System | Twin Screw |
Auxiliary engine(s) | |
Propellers | 2 |
Speed Maximum (knots) | |
Speed Cruising (knots) | 11 |
Cargo & Tank Capacities
Deck Cargo (tons) | |
Deck Area (m2) | |
Deck Load (tons/m2) | |
Fuel Tanks Capacity (m3) | |
Fresh Water Tanks Capacity (m3) | |
Ballast Tanks Capacity (m3) |
Additional Information
Fixed pitch propellers in fixed nozzles through reverse reduction gearboxes fitted with box coolers
Bollard pull 23 tonnes
Frame spacing 500 mm THRO OUT
Tank Capacities
Fuel 100m3
Fresh Water 45m3
Navigation Aids
GPS and magentic compasses, DGPS, 2 x radars, echosounder, doppler log, AIS, cameras and displays, searchlights, Navtex, electronic chart display, autopilot, Inmarsat C, MF/HF radio, VHF radios, iridium satellite phone, email, cell phone.

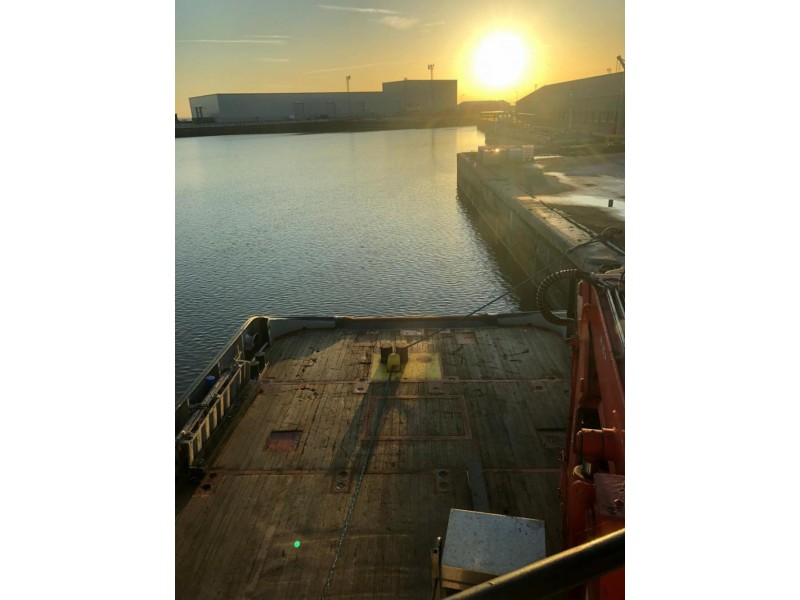

Equipment

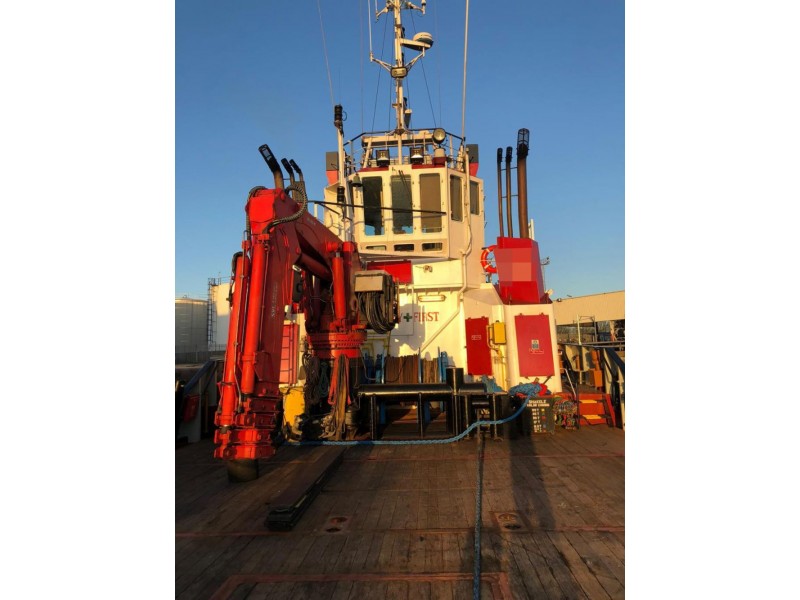

150bhp bowthruster, 45 tonne split drum anchor handling and towing winch, 9 tonne tugger winch, hydraulic tow pins and hook, towing hook, 90t/m crane with capacity 18tonnes at 4.5m to 6 tonnes at 12.5m reach, stern roller, hardwood covered working deck, 2 x 6BT 5.9D-M 78kw generator sets, diesel hydrualic pump set, fuel and fresh water transfer pumps and hoses, push bow, hose handling gates.
Accommodation
Heated and air conditioned to suit severe North Caspian conditions, for up to 12 persons in 6 cabins
