1186BSB
For Sale From Direct Owners
| Reference | 1186BSB |
| Type | Barge - RORO |
| Class | Local Swedish |
| Build year / place | 2003 / UNITED KINGDOM |
| Length (m) | 58 |
| Breadth (m) / Depth (m) | 14.8 / 2.8 |
| NT (tons) / GT (tons) | / |
| Engine(s) power (BHP) | 1789 |
| Engine(s) | 4 x Cummins |
| Location | NORDIC |
| Price | POA |
Interested in this vessel?
Please, feel free to contact us at any time.
We remain at your entire disposal.
Detailed Information
General
| Built Year & Place | 2003 / UNITED KINGDOM |
| Hull Material | Steel |
| Flag | SWEDEN |
| Class Society and Notation | Local Swedish Inland Waters |
| Next DD | |
| Next SS | |
| Next Annual Survey |
Principle Dimensions
| Length Overall (m) | 58 |
| Length Between Prep. (m) | |
| Breadth (m) | 14.8 |
| Depth (m) | 2.8 |
| Draft (m) | 1.5 |
| NT (tons) | |
| GT (tons) | |
| DWT (tons) | 294 |
Machinery & Propulsion
| Total Power Output (BHP) | 1789 |
| Main Engine(s) | 4 x Cummins |
| Main Propulsion System | Azimuth Jet Thrusters |
| Auxiliary engine(s) | |
| Propellers | |
| Speed Maximum (knots) | |
| Speed Cruising (knots) | 9 |
Cargo & Tank Capacities
| Deck Cargo (tons) | |
| Deck Area (m2) | |
| Deck Load (tons/m2) | |
| Fuel Tanks Capacity (m3) | |
| Fresh Water Tanks Capacity (m3) | |
| Ballast Tanks Capacity (m3) |
Additional Information
It was originally built for shipping airplane wings for Airbus in Wales. The low air draft and shallow draft makes it perfect for passing under low bridges and canals in cities.
It has a low level cargo deck with 300 tons capacity, lift system to lower cargo pallet legs in to the hull for low air draft, and electronically controlled ballasting and draft/air draft measurement system.
Cargo handling is done over the stern.

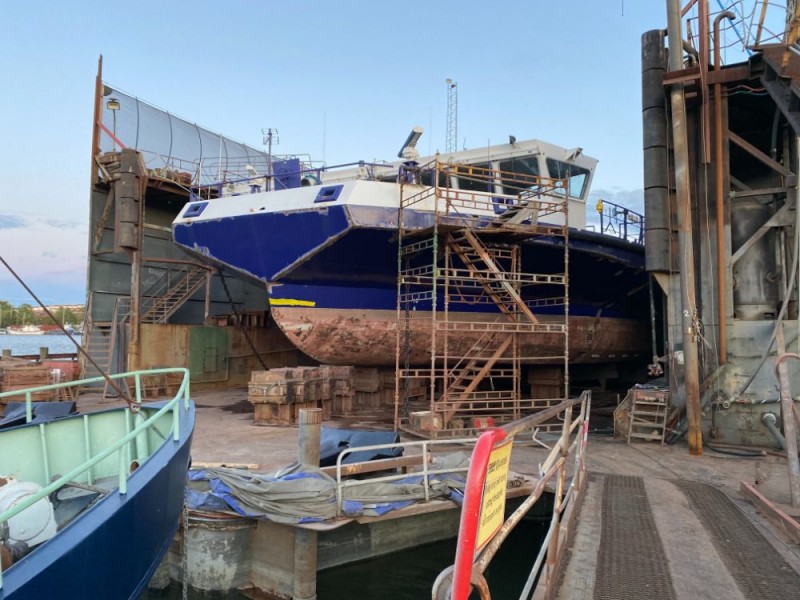

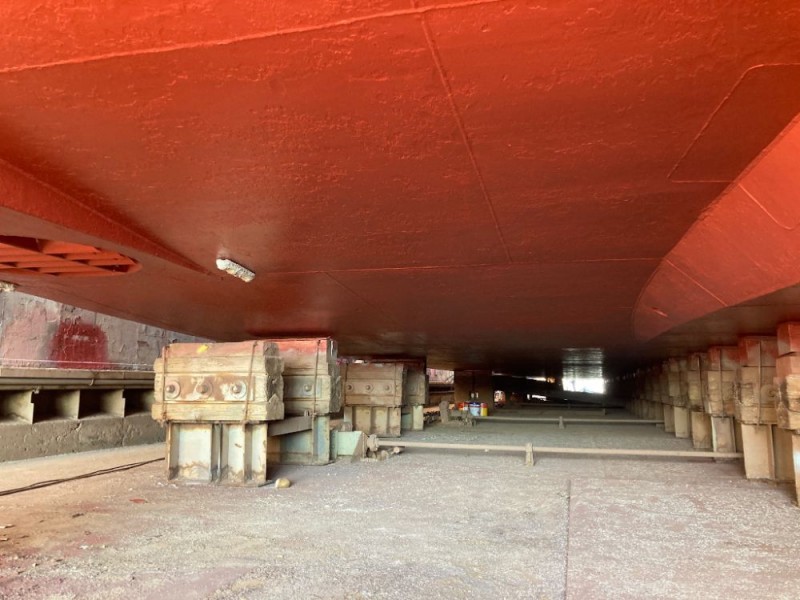

Latest dry dock 2021.
VHF – AIS – EPIRBS
LENGTH ON LWL 55.45 m
SCANTUNG DRAUGHT 2 m
AIR DRAUGHT 4.3 M
FRAME SPACING 550 mm
Main Engines:
2x Cummins KTA19-M3, 477 kW each.
2x Cummins 6CTA 8,3M, 190 kW each.
Propulsion:
2x Jastram Azimuth Jet Thruster, type W60, 477 kW each.
2x Jastram Azimuth Jet Thruster, type W20, 180 kW each.
Clear deck space: 380 m2.
Misc: Cabins for a crew of four.
