946BSB
For Sale & Charter From Direct Owners
Reference | 946BSB |
Type | Multicat |
Class | MCA |
Build year / place | 1969 / UNITED KINGDOM |
Length (m) | 26 |
Breadth (m) / Depth (m) | 8.53 / 3.35 |
NT (tons) / GT (tons) | / |
Engine(s) power (BHP) | 750 |
Engine(s) | 2 x Caterpillar 3406 |
Location | EUROPE |
Price | 415,000 GBP |
Interested in this vessel?
Please, feel free to contact us at any time.
We remain at your entire disposal.
Detailed Information
General
Built Year & Place | 1969 / UNITED KINGDOM |
Hull Material | Steel |
Flag | UNITED KINGDOM |
Class Society and Notation | MCA CAT 2 60NM |
Next DD | |
Next SS | 10/2023 |
Next Annual Survey |
Principle Dimensions
Length Overall (m) | 26 |
Length Between Prep. (m) | |
Breadth (m) | 8.53 |
Depth (m) | 3.35 |
Draft (m) | 2 |
NT (tons) | |
GT (tons) | |
DWT (tons) |
Machinery & Propulsion
Total Power Output (BHP) | 750 |
Main Engine(s) | 2 x Caterpillar 3406 |
Main Propulsion System | Twin screw |
Auxiliary engine(s) | 2 X 96 KW |
Propellers | 2 |
Speed Maximum (knots) | |
Speed Cruising (knots) | 7 |
Cargo & Tank Capacities
Deck Cargo (tons) | |
Deck Area (m2) | 100 |
Deck Load (tons/m2) | |
Fuel Tanks Capacity (m3) | 20 |
Fresh Water Tanks Capacity (m3) | 11 |
Ballast Tanks Capacity (m3) |
Additional Information
Latest Dry Dock in 2022.
No class (was originally Lloyds, but this lapsed 10 years ago when current Owners bought the vessel and modified it). Currently certificated under UK workboat Code, Cat 2 (60NM).
Main engines, generators, deck crane, electrics, navigation equipment, accommodation, galley, washroom, waste tank, fire fighting system, shafts, propellers, shaft seals, etc, are all renewals (not original).

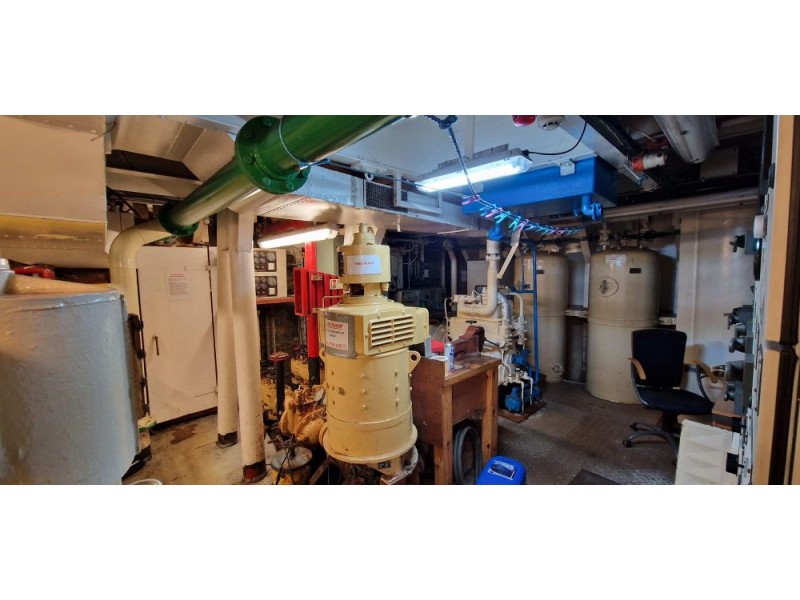

All the engines are in good working order, with one generator just having a full rebuild.
The Hull is built of extremely thick steel plating. The deck is 20mm thick, top sides are 18mm thick, bottom is 13mm thick and longitudinal areas are up to 50mm thick.

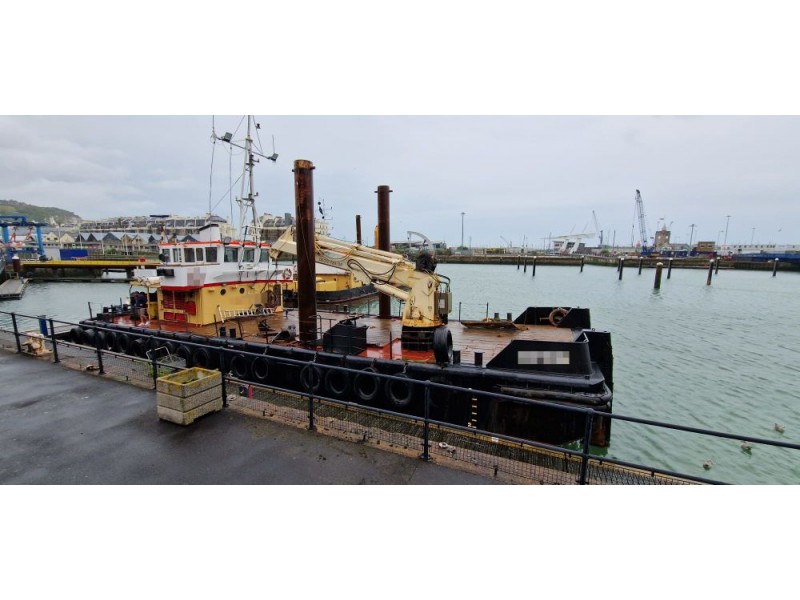

She has a large clear deck area, ideal for multipurpose operations, push bows, large deck crane with approx. 5t capacity at 20m, now fitted with remote control. Spud legs and shallow draft of only 2m.
This is an extremely versatile multicategory vessel Offering shallow draft deck crane spud legs and substantial deck space and load capacity Ideally suited to diving construction dredging support duties salvage and survey work
Modified in UK in 2013
Deck cargo 100 ton

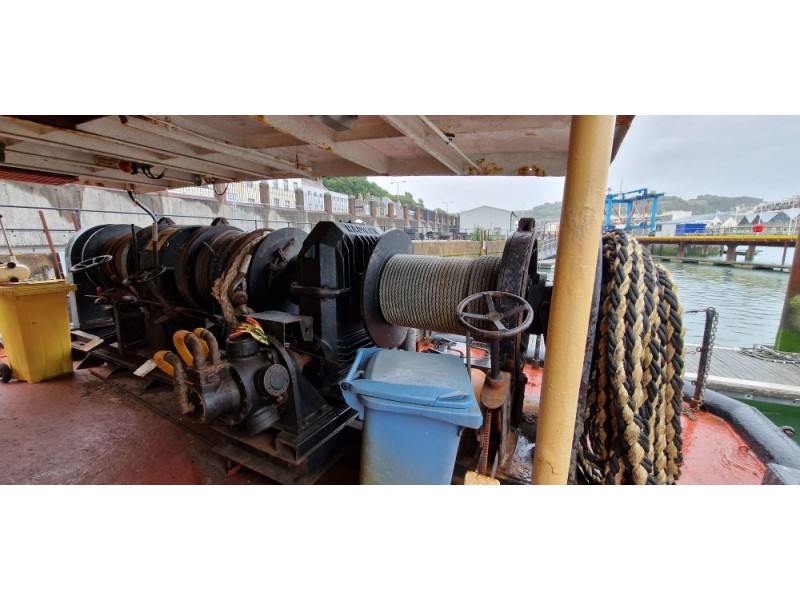

Winches 10T Triple Drum
Deck Crane (120Tm) 15000Kg 7 3m 4 650kg 19 5m
2 x 12m spud legs x 610mm OD

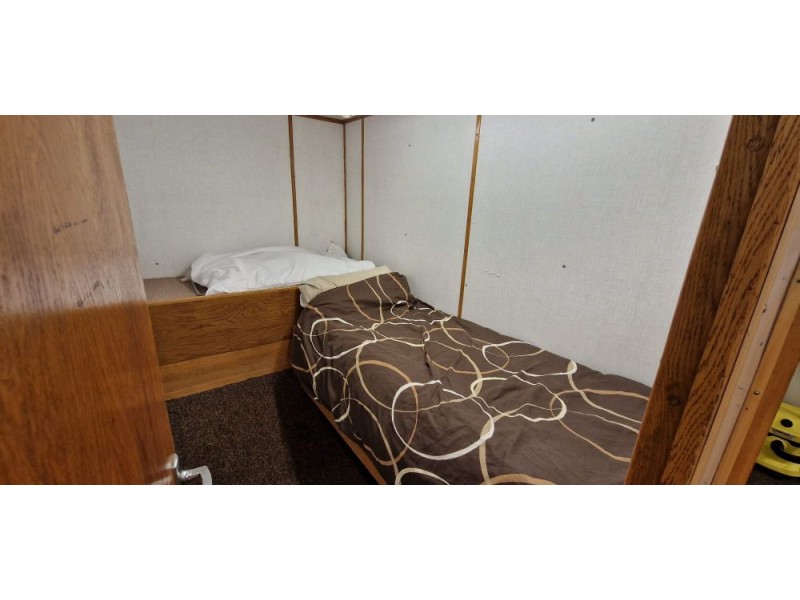

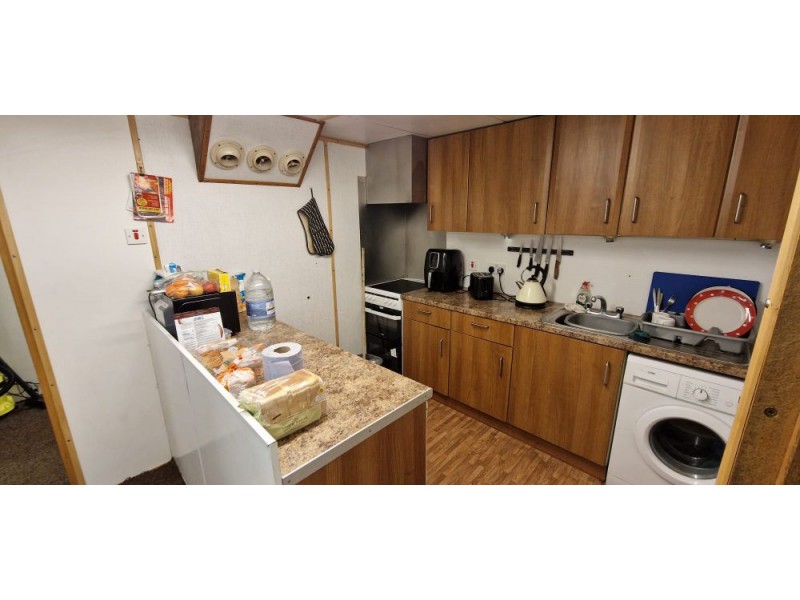

Accommodation – 4 x single cabins, Galley, washroom, Mess room, deck mess room, deck toilet
75mm and 100mm general service water pumps
All details are given in good faith and are believed to be accurate but no warranty of accuracy or completeness or suitability for purpose is either stated or implied. Prices are subject to change without notice.
