DO0269
For Sale & Charter From Direct Owners
| Reference | DO0269 |
| Type | Tug - Twin Screw |
| Class | DNV |
| Build year / place | 1982 / NETHERLANDS |
| Length (m) | 28 |
| Breadth (m) / Depth (m) | 8.8 / 4.25 |
| NT (tons) / GT (tons) | 72 / 241 |
| Engine(s) power (BHP) | 2432 |
| Engine(s) | 2 x Caterpillar D 399 PCTA |
| Location | NORDIC |
| Price | POA |
Interested in this vessel?
Please, feel free to contact us at any time.
We remain at your entire disposal.
Detailed Information
General
| Built Year & Place | 1982 / NETHERLANDS |
| Hull Material | STEEL |
| Flag | NORWAY |
| Class Society and Notation | DNV +1A TUG |
| Next DD | 04/2024 |
| Next SS | 01/2026 |
| Next Annual Survey |
Principle Dimensions
| Length Overall (m) | 28 |
| Length Between Prep. (m) | |
| Breadth (m) | 8.8 |
| Depth (m) | 4.25 |
| Draft (m) | 3.8 |
| NT (tons) | 72 |
| GT (tons) | 241 |
| DWT (tons) |
Machinery & Propulsion
| Total Power Output (BHP) | 2432 |
| Main Engine(s) | 2 x Caterpillar D 399 PCTA |
| Main Propulsion System | TWIN SCREW |
| Auxiliary engine(s) | 2 X 95 KW , 380/220 V at 50 Hz |
| Propellers | |
| Speed Maximum (knots) | |
| Speed Cruising (knots) |
Cargo & Tank Capacities
| Deck Cargo (tons) | |
| Deck Area (m2) | |
| Deck Load (tons/m2) | |
| Fuel Tanks Capacity (m3) | |
| Fresh Water Tanks Capacity (m3) | |
| Ballast Tanks Capacity (m3) |
Additional Information

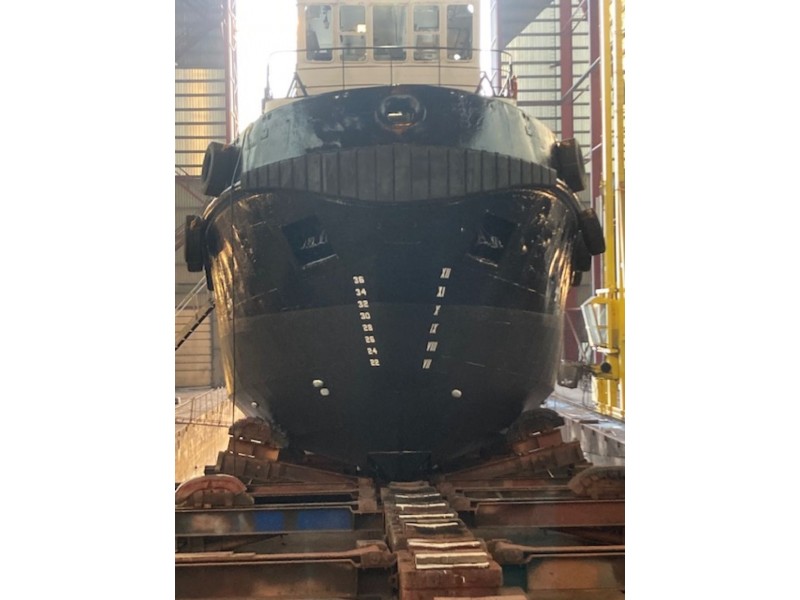

Last dry dock: Nov 2022 Painting and some pipe work.
Equipped with fully ECDIS (Maris)
New towing wire June 2022 750m 40mmm
Fresh water: 35 tons
Bunkers: 81 tons
Water ballast: 35 tons
Foam tank: 5.2 tons
Bollard pull: 32 tons
Main engines Girtype Reintjes WAV 1050
Auxiliary Engines: 2 by type Caterpillar 3304, each MDC 111 MHP
Retractable 360 degrees bow thruster:
Holland Roer type HRP-330-50
Bollard Pull of 4 tons in all directions
Fire Fighting:
1 by engine Caterpillar 3306 PC-TA at 198 HP. 1 by firepump type Nijuis NC1-150/250 at capacity 288 m3/hr at a head 10,5 bar
1 by Foampump type Edur with capacity 14 m3/hr at a head 12 bar
2 by pipe type manually operated monitors with water capacity of 2400 ltrs./min at 8 bar, or 288 m3/hr
Complete fireman equipment. Mob. boat type Akva.
Towing and Salvage Equipment:
Towingwinch type Hydrakraft 88-20t. with main towwire of 750 meters, and sparewire of 350 meters on same drum.
Portable pumps with various capacities
Oxy-acetylene burning torch, cutting and welding.
Sundry steel wires, shackles, pendant and polypropylene lines.
Capstan afterdeck type Steen, capacity 30-75 kn
Nautical equipment:
Autopilot type Anschutz Digital Pilotstar “D”
SSB radio type Furuno SSB FS-1562/15
VHF Furuno FM-8500 with DSC. ch. 70 duty. Sailor tipe RT 144c. Weather
fax Furuno Fax-208A MK2. Navtex Furuno OP08-2
Electronic charts type Maxsea and GPS DGPS Furuno GP-80
Echo Sounder type Radio Holland E1 4242
Deck Crane: Palfinger Sea Crane 13.4m/720 kg
All details are given in good faith and are believed to be accurate but no warranty of accuracy or completeness or suitability for purpose is either stated or implied. Prices are subject to change without notice.
