DO0292
For Sale From Direct Owners
| Reference | DO0292 |

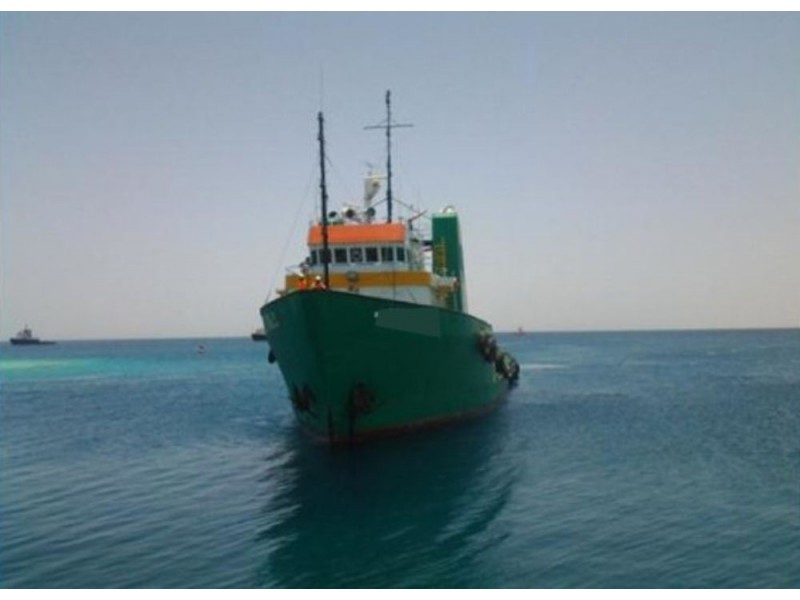

| Type | Offshore - AHTS |
| Class | Local Class |
| Build year / place | 1983 / |
| Length (m) | 53 |
| Breadth (m) / Depth (m) | 12.2 / 4.5 |
| NT (tons) / GT (tons) | 560 / 977 |
| Engine(s) power (BHP) | 4546 |
| Engine(s) | 2 x EMID 12 - 645 - E7B |
| Location | RED SEA |
| Price | 475,000 USD |
Interested in this vessel?
Please, feel free to contact us at any time.
We remain at your entire disposal.
Detailed Information
General
| Built Year & Place | 1983 / |
| Hull Material | Steel |
| Flag | SIERRA LEONE |
| Class Society and Notation | Local Class |
| Next DD | |
| Next SS | 12/2023 |
| Next Annual Survey |
Principle Dimensions
| Length Overall (m) | 53 |
| Length Between Prep. (m) | |
| Breadth (m) | 12.2 |
| Depth (m) | 4.5 |
| Draft (m) | 3.9 |
| NT (tons) | 560 |
| GT (tons) | 977 |
| DWT (tons) |
Machinery & Propulsion
| Total Power Output (BHP) | 4546 |

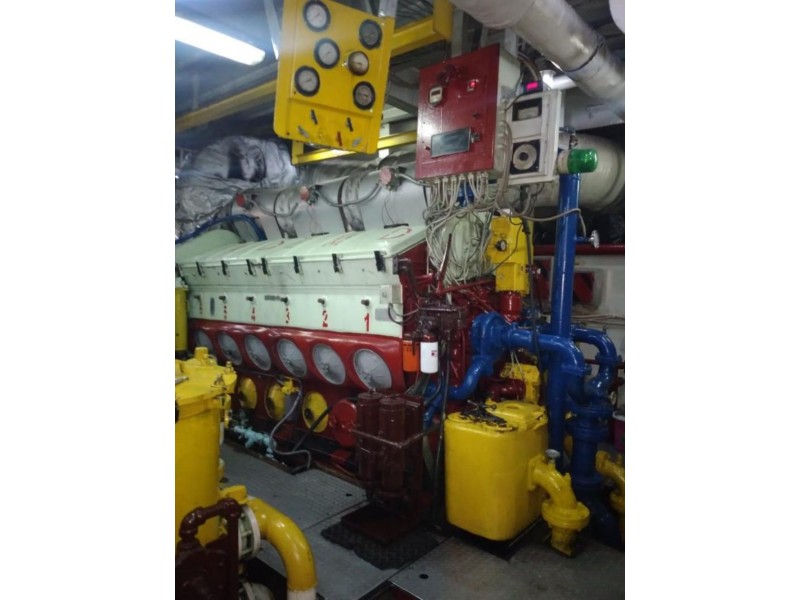

| Main Engine(s) | 2 x EMID 12 - 645 - E7B |
| Main Propulsion System | Twin Screw |
| Auxiliary engine(s) | |
| Propellers | 2 |
| Speed Maximum (knots) | 13 |
| Speed Cruising (knots) | 10 |
Cargo & Tank Capacities
| Deck Cargo (tons) | |
| Deck Area (m2) | |
| Deck Load (tons/m2) | |
| Fuel Tanks Capacity (m3) | 388 |
| Fresh Water Tanks Capacity (m3) | 626 |
| Ballast Tanks Capacity (m3) |
Additional Information
Propellers: 2 Fixed pitch
Kort Nozzles: YES
Auxiliaries: 2 – GM 8V 71,250 kw 110/220/440 VAC 60 HZ 1 – GM8 V 71
Bow Thrusters : 1 – GM871,300HP
Thrust (Max) : 4.1 t

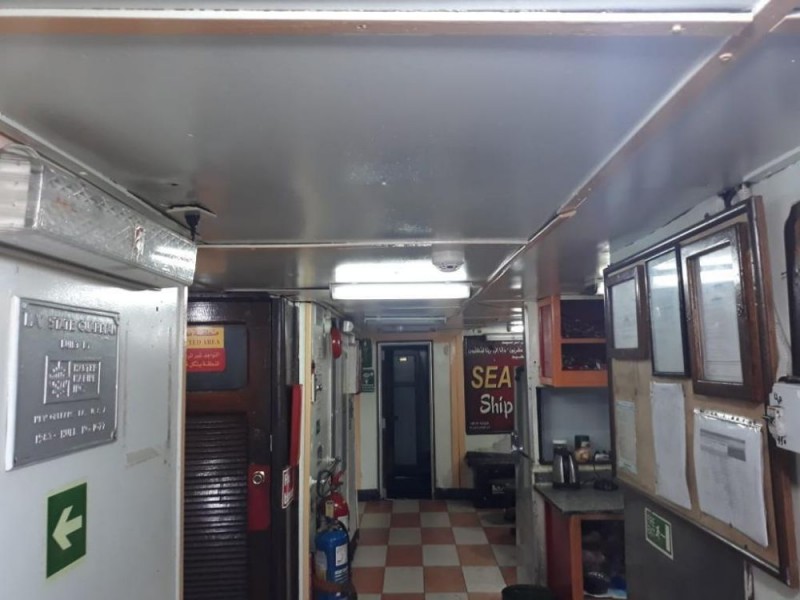

Accommodation
Staterooms:
3 × 1 berth cabins
4 × 2 berth cabins
1× 4 berth cabins
Total Certified to Carry: 28
CARGO CAPACITIES
Deck Area: 122 m2
Potable Water: 288 m3
Liquid Mud: 230 m3
Bulk Tanks 141m3
Walk-In Cooler: 8 m3
Deck Strength : 5 t/m2
Displacement Load Line: 1,844 t/m2
Cargo winch: 1 hydraulic winch 5t
NAVIGATIONAL EQUIPMENT
-Radar(s): 2 Furuno-70b2
-Radio(s) :Sailor RT -2048 (2
Vhf (dsc) Furuno fm-8500 (1)
Ssb Furuno fs-1550 (1)
-Gyro Compass :Sperry MK 37
-Fathometer :860/2650
-Auto Pilot :furuno Fap.5001
-Depth recorder :Furunon and Kodiak
TOW AND ANCHOR HANDLING
– Bollard Pull: 60 MT
-Combined two drum heavy duty anchor handling & towing winch SMATCO 72 DAW – 250, Double-drum,
Water fall type 253,120 IBS.
Tow wire ……….. 1000m/50mm
Spare wire ……… 1000m/50mm
– Winch …………. one hydraulicwinch ,5tons
– Model …………. SMATCO 72 DAW
– Line Pull ………. 253,120lbs,single line pull
– Capstan ………. (2) Hydraulic Braatvaag
– Stern Roller …… 5 ft Diameter/ 8 ft Wide
– Tow Pins ……… (2) Hydraulian
– Pelican Hook …. Alpha Type German Made
PERFORMANCE
Speed & Fuel Consumption:
Maximum : 13 knots @ 13.3 t/d
Cruising : 10 knots @ 11.8 t/d
Standby (Generators only): 0.5 t/d
OTHER DECK EQUIPMENT
Rescue Zone: Port & Starboard Side
Oily Water separator: 1×1M3/hr MARPOL
standard
Water Maker: 1×5T/Day Reverse Osmosis
Sewerage treatment plant: 1×40 men per day
PUMPING RATES
-Fuel: 400 GPH 180 tdh
-Potable Water 400 GPH @180 TDH
-Drill Water: 400 GPH@ 180 TDH
-Bulk Cement: 700 CU.PT/H @120 FT
-Barite : CU.PT/H @120 FT
-Liquid Mud: 700 BBLS/H @150 FT
FIRE FIGHTING
-¾ FiFi 1:
2 fire monitors – 4 x 450 m3/hr 1800 m3/hr
Foam tanks capacity: 15.6 m3
-Anti – Pollution Equipment :
Two booms with nozzles, one on each side. 8m long
-Tank: 15.6 m3
