DO0294
For Sale From Direct Owners
| Reference | DO0294 |
| Type | Offshore - Supply Support Vessel |
| Class | ABS Offshore Support |
| Build year / place | 2004 / UNITED STATES OF AMERICA |
| Length (m) | 77 |
| Breadth (m) / Depth (m) | 16.5 / 5.8 |
| NT (tons) / GT (tons) | 797 / 2045 |
| Engine(s) power (BHP) | 6110 |
| Engine(s) | x |
| Location | UNITED STATES EAST COAST |
| Price | POA |
Interested in this vessel?
Please, feel free to contact us at any time.
We remain at your entire disposal.
Detailed Information
General
| Built Year & Place | 2004 / UNITED STATES OF AMERICA |
| Hull Material | Steel |
| Flag | UNITED STATES OF AMERICA |
| Class Society and Notation | ABS Offshore Support AMS DP2 Unrestricted |
| Next DD | |
| Next SS | |
| Next Annual Survey |
Principle Dimensions
| Length Overall (m) | 77 |
| Length Between Prep. (m) | |
| Breadth (m) | 16.5 |
| Depth (m) | 5.8 |
| Draft (m) | 4.8 |
| NT (tons) | 797 |
| GT (tons) | 2045 |
| DWT (tons) | 2930 |
Machinery & Propulsion
| Total Power Output (BHP) | 6110 |
| Main Engine(s) | x |
| Main Propulsion System | Twin Screw |
| Auxiliary engine(s) | 2 X 1820 KW , Cummins,1 X 910 KW |
| Propellers | 2 |
| Speed Maximum (knots) | |
| Speed Cruising (knots) |
Cargo & Tank Capacities
| Deck Cargo (tons) | |
| Deck Area (m2) | |
| Deck Load (tons/m2) | |
| Fuel Tanks Capacity (m3) | 540 |
| Fresh Water Tanks Capacity (m3) | 800 |
| Ballast Tanks Capacity (m3) |
Additional Information
Light Draft: 2 m
Minimum Height: 21.5 m
Freeboard: 1 m
Displacement: 4,430 lt 4,500 mt
Clear Deck Space: 54 x 14 m
Clear Deck Area: 740 m2
Deck Strength: 5 t/m2
Capacities
Deck Cargo: 1,200 t
Fuel Oil: 540 m3
Potable Water: 65.1 m3
Fresh Water: 800 m3
Drill/Ballast Water: 1 480 m3
Bulk Tanks (4 tanks): 200 m3
Liquid Mud (21 lbs/gal): 1,310 m3
Machinery
Diesel Electric Vessel
Propulsive/Total HP: 4,200 / 6,110
Z-Drives: Yes
Propellers (2): 2100HP Steerprop SP 20
Kort Nozzles: 2
Primary Generators (2): 1,820 kw 480 v 60 hz
Driven by: Cummins QSK 60
Secondary Generators (1): 910 kw 480 v 60 hz
Driven by: Cummins KTA 38
Emergency Generators (1): 170 kw 480 v 60 hz
Driven by: Cummins 6 CTA 8.3
Bow Thruster (2): BERG 12S TT
Driven by: 746kW Electric Motor
Total Thrust: 25 st 22.7 mt
Performance
Fuel Consumption Vs Speed
Maximum: 17.3 m3/day (190 gph) @ 12.5 knots
Cruising: 13.4 m3/day (150 gph) @ 11 knots
Economical: 10.9 m3/day (120 gph) @ 10 knots
Standby: 1.9 m3/day (20.8 gph) @ 0 knots
Range @ 11 Knots: 10,600 nm
Transfer Rates
Fuel Oil: 660 gpm @ 200 ft 150 m3/h @ 61 m
Fresh Water: 660 gpm @ 200 ft 150 m3/h @ 61 m
Drill/Ballast Water: 550 gpm @ 200 ft 120 m3/h @ 61 m
Bulk: 29.7 cfm @ 180 ft 50 m3/h @ 56 m
Liquid Mud: 650 gpm @ 200 ft 150 m3/h @ 60 m

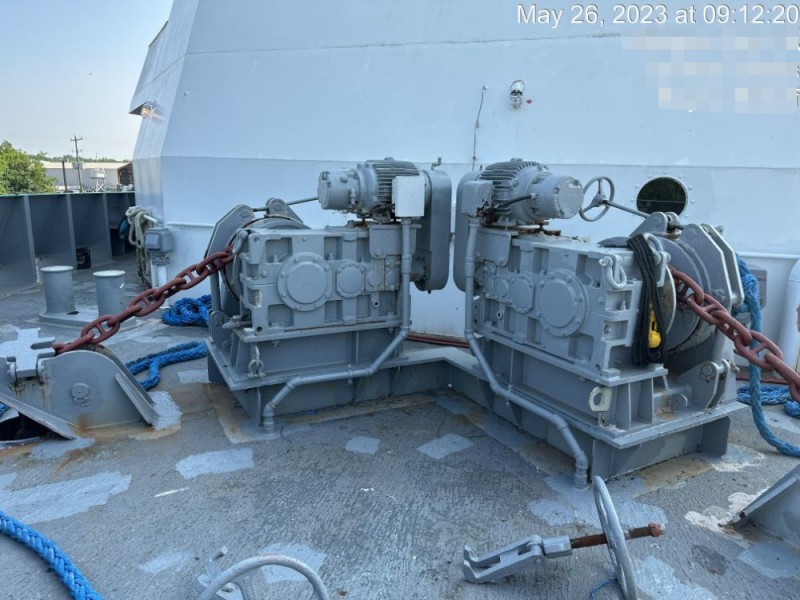

Deck Equipment
Anchors (2): 2100 KG STOCKLESS
Anchor Chain: 220 m of 38 mm chain per side
Accommodations
No. of Berths: 22
Cabins: 4×1-man, 5×2-man & 2×4-man
Certifi ed to Carry: 22
Galley seating: 14
Nav/Comms Equipment
Radar(s): 2
Depth Sounder: 1
Gyro Compass: 3
Doppler Log: 1
Radio: 3 x VHF; 1 x SSB
Sat Com: Furuno FELCOM15
Special Equipment
Dynamic Positioning: Alstom ADP-21
Ref. Systems: 3 x MRU; 2 x DGPS
1 x Microwave-based; 1 x Laser-based
Mud Circulation System/
Mud Mixers:
Yes/Yes
Tank Cleaning: Yes
Rescue Boat: 6-Man MOB 4.5A
