DO0307
For Sale & Charter From Direct Owners
| Reference | DO0307 |
| Type | Offshore - Supply Support Vessel |
| Class | DNV +1A1 |
| Build year / place | 2003 / NORWAY |
| Length (m) | 72 |
| Breadth (m) / Depth (m) | 16 / 7 |
| NT (tons) / GT (tons) | 936 / 2244 |
| Engine(s) power (BHP) | 5450 |
| Engine(s) | 2 x |
| Location | NORTH EUROPE |
| Price | POA |
Interested in this vessel?
Please, feel free to contact us at any time.
We remain at your entire disposal.
Detailed Information
General
| Built Year & Place | 2003 / NORWAY |
| Hull Material | Steel |
| Flag | UNITED KINGDOM |
| Class Society and Notation | DNV +1A1 Supply Vessel |
| Next DD | 03/2026 |
| Next SS | 03/2028 |
| Next Annual Survey | 03/2026 |
Principle Dimensions
| Length Overall (m) | 72 |
| Length Between Prep. (m) | |
| Breadth (m) | 16 |
| Depth (m) | 7 |
| Draft (m) | 5.9 |
| NT (tons) | 936 |
| GT (tons) | 2244 |
| DWT (tons) | 3200 |
Machinery & Propulsion
| Total Power Output (BHP) | 5450 |
| Main Engine(s) | 2 x |
| Main Propulsion System | Twin Screw |
| Auxiliary engine(s) | |
| Propellers | 2 |
| Speed Maximum (knots) | |
| Speed Cruising (knots) |
Cargo & Tank Capacities
| Deck Cargo (tons) | |
| Deck Area (m2) | |
| Deck Load (tons/m2) | |
| Fuel Tanks Capacity (m3) | 917 |
| Fresh Water Tanks Capacity (m3) | 796 |
| Ballast Tanks Capacity (m3) |
Additional Information
Presently under charter

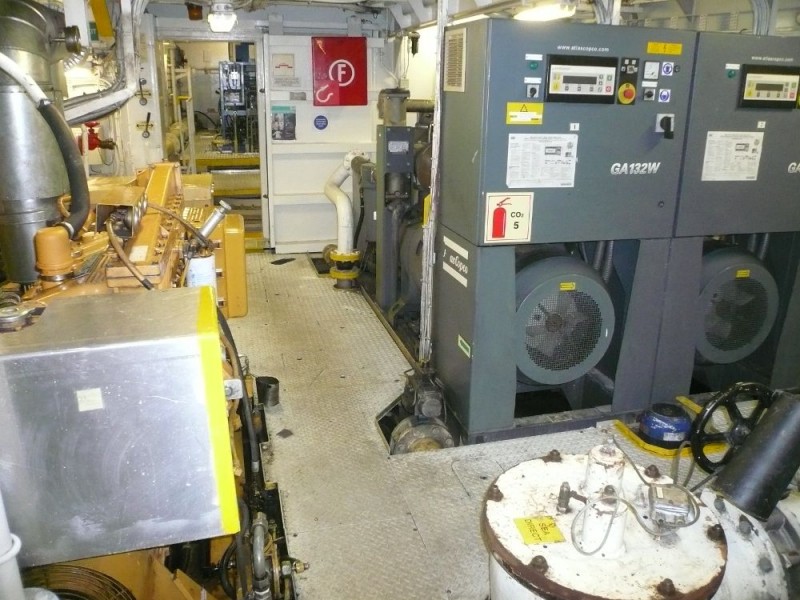

MACHINERY

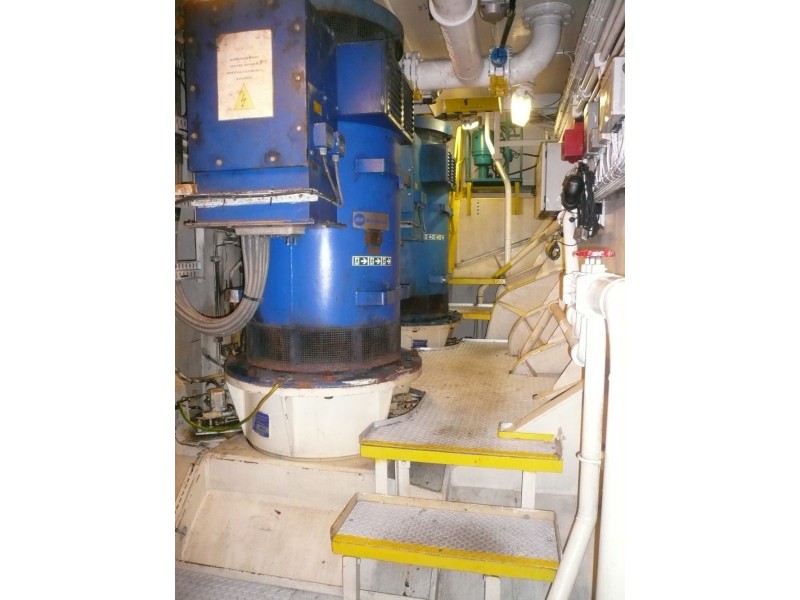

Shaft Alternators 2 x 1,690 KVA
Thrusters Bow 1 x 800 BHP
Thruster Azimuth 1 x 1000 BHP
Thrusters Stern 2 x 800 BHP
Rudders 2 x High Lift
Propellers 2 x CPP
Capstans 2 x 8 T
Tuggher Winch 2 x 10T
DYNAMIC POSITIONING SYSTEM (CLASS II)
Kongsberg Simrad SDP 21 (DP II)
2 x DPC 11 Controller Unit
“Green” DP Software module installed
RRM Joystick
REFERENCES
HiPAP acoustic systme
DGPS
Light weight Taut Wire (Mk 12)
Fan beam laser
1 x SPT 331 Transponder beacon
2 x RPT 316 RT Transponders beacon
SURVEY ROOMS
6m x 3.5m survey room (main deck)
5.5 m x 4m survey office (A deck)
19″ racks and 220v power
Telemetry/video /data link to bridge and Client cabins
EXTRA FEATURES FOR ROV OPERATIONS
Moon Pool (4.35 x 3.8m) passively stabilised
Main deck aft reinforced for 150 T “A” frame
Main deck power supplies (2x440v/600 A)
Survey tuve (0.5m clear hole)
Survey pole (projects up to 4.0m below hull)
Spare 14″ gate valve (PS opposite HiPAP for 2nd Gantry and pole system)
Removal cargo rails P&S for ROV launch (8.275m each side in 2 sections)
CRANES
Deck Crane 1x5T @ 10m (Max 65m of 19 mm wire)
Aft deck strengthened for 400 T/M Crane, flush with deck, with power supply

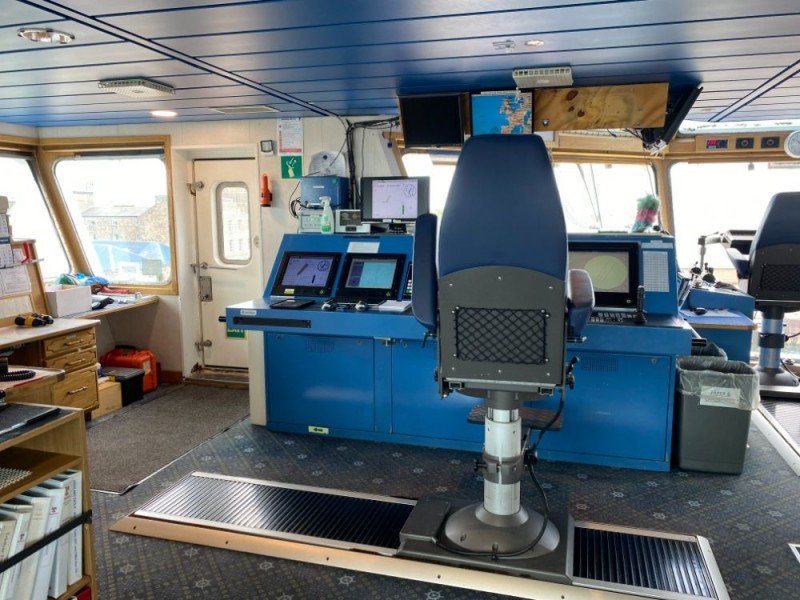

NAVIGATION & COMMUNICATION EQUIPMENT
1 Furuno 10 CM ARPA RADAR
1 Furuno 3CM RADAR, Model 2115
1 Furuno Satellite Navigator GP 31
1 Jotron EPIRB
2 Jotron 9Ghz Radar transponder
3 Navico SRH 150 VHF GMDSS
4 Motorola GP 900 portable UHF
2 GSM Cellular phones
3 Anschutz digital autopilot
1 Furuno echo sounder FE-700
1 Furuno Doppler speed log DS80
2 Windobserver 11 wind indicator
1 Furuno MF/HF SSB Radio station
1 Furuno DSC terminal DSC 6A
2 Thrane & Thrane SAT C
1 Furuno SAT B FELCOM 81
1 Furuno Navtex receiver NX-500
2 Sailor Compact VHF RT4722 with DSC
1 Sailor RT 2048 simplex VHF
DISCHARGE RATES
Fuel 200m3/h
Pot Water 200 m3/h
Drill Water 150 m3/h
Oil Based Mud 75 m3/h
Base Oil 150 m3/h
Brine 75 m3/h
Cement 80 T/h
Barytes 60 T/h
Bentonite 100 T/h
CARGO CAPACITY
Deck Area 640 m2
Deck Load 1500 T
Drill Water 1,152.4 m3
Oil Based Mud 769.3 m3
Base Oil 208 m3
Brine 769.3 m3
Dry Bulk 256 m3
ACCOMMODATION
14 x 1 Man
12 x 2 Man
All details are given in good faith and are believed to be accurate but no warranty of accuracy or completeness or suitability for purpose is either stated or implied. Prices are subject to change without notice.
