771BSB
For Sale From Direct Owners
| Reference | 771BSB |

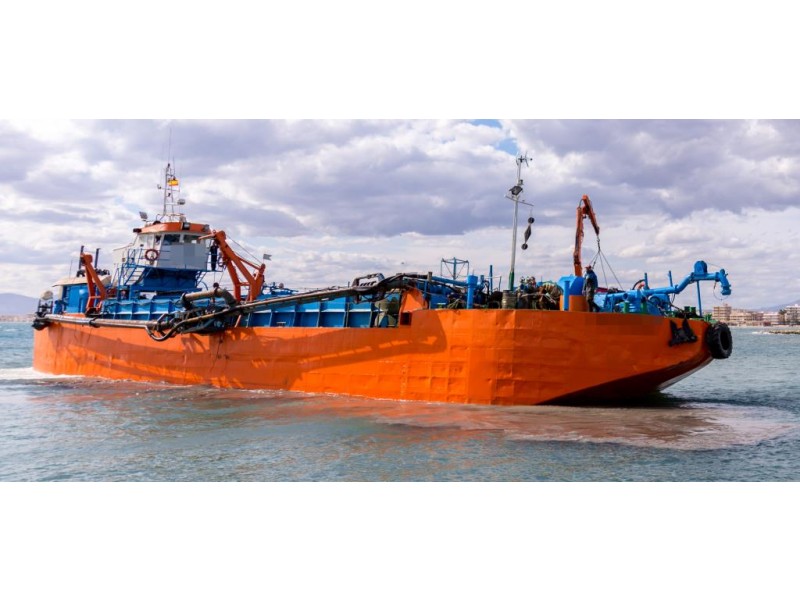

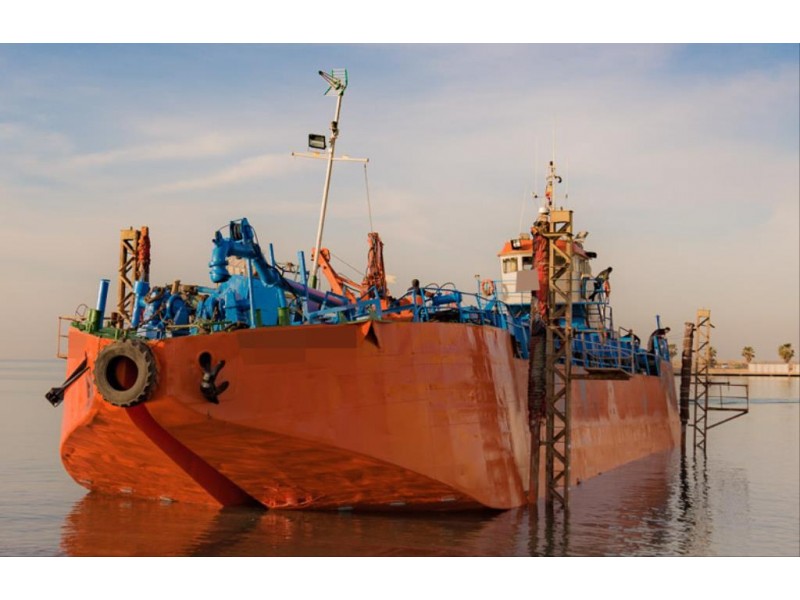

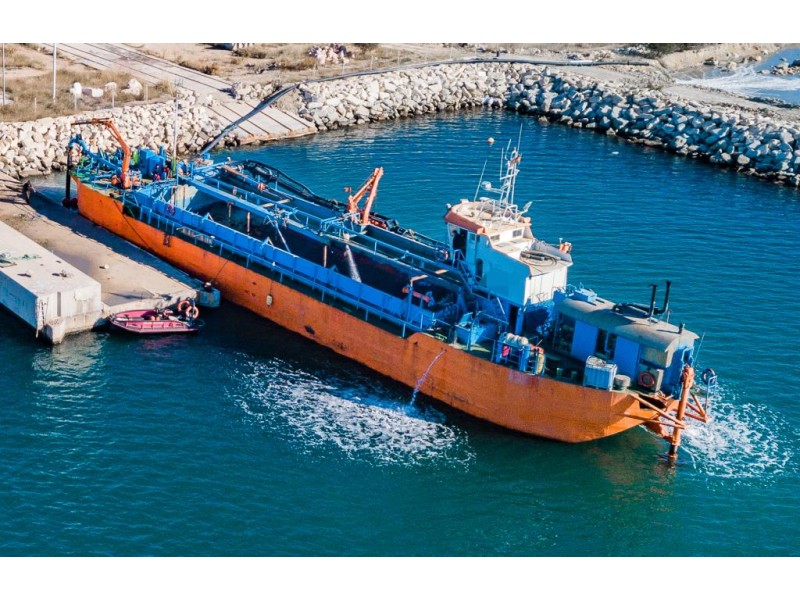

| Type | Dredger - Trailing Suction Hopper Dredger |
| Class | LAID UP |
| Build year / place | 1972 / SPAIN |
| Length (m) | 45 |
| Breadth (m) / Depth (m) | 9.8 / 3.66 |
| NT (tons) / GT (tons) | / 290 |
| Engine(s) power (BHP) | 1200 |
| Engine(s) | 1 x Cummins KTA38 (2007) 1500rpm |
| Location | SOUTH SPAIN |
| Price | 800,000 EUR |
Interested in this vessel?
Please, feel free to contact us at any time.
We remain at your entire disposal.
Detailed Information
General
| Built Year & Place | 1972 / SPAIN |
| Hull Material | Steel |
| Flag | SPAIN |
| Class Society and Notation | LAID UP Sea Going |
| Next DD | |
| Next SS | |
| Next Annual Survey |
Principle Dimensions
| Length Overall (m) | 45 |
| Length Between Prep. (m) | |
| Breadth (m) | 9.8 |
| Depth (m) | 3.66 |
| Draft (m) | 3.3 |
| NT (tons) | |
| GT (tons) | 290 |
| DWT (tons) |
Machinery & Propulsion
| Total Power Output (BHP) | 1200 |
| Main Engine(s) | 1 x Cummins KTA38 (2007) 1500rpm |
| Main Propulsion System | SINGLE SCREW SCHOTTEL |
| Auxiliary engine(s) | 2 X 30 KW , Stanford |
| Propellers | 1 |
| Speed Maximum (knots) | 9 |
| Speed Cruising (knots) |
Cargo & Tank Capacities
| Deck Cargo (tons) | |
| Deck Area (m2) | |
| Deck Load (tons/m2) | |
| Fuel Tanks Capacity (m3) | |
| Fresh Water Tanks Capacity (m3) | |
| Ballast Tanks Capacity (m3) |
Additional Information
Hopper Capacity 650 m3 maximum
ACCOMMODATION
Cabins 1 x 2 men and 1 x 4 men

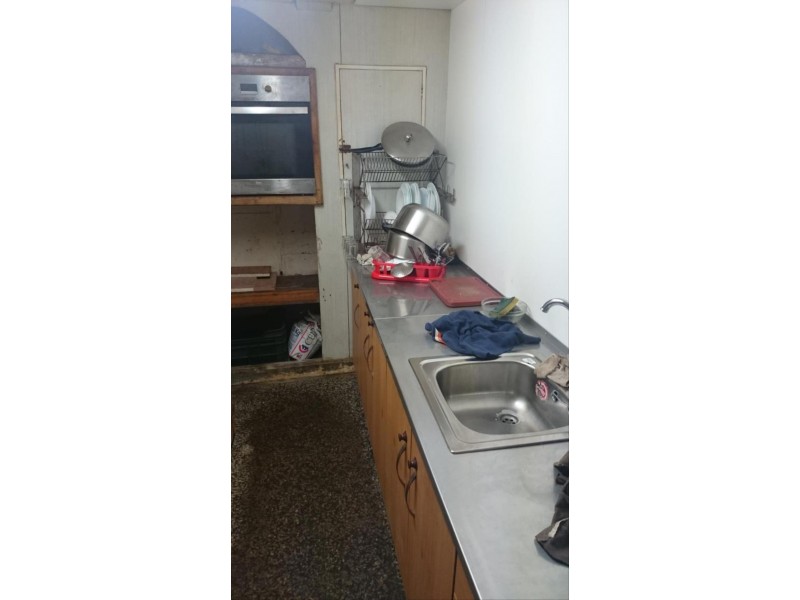

Dining room – Kitchen Yes
Toilet – Shower Yes
NAVIGATION AND COMMUNICATION EQUIPMENT
Sounder
AIS
NAVTEX
Radar
VHF(s)
SART
GPS(s)

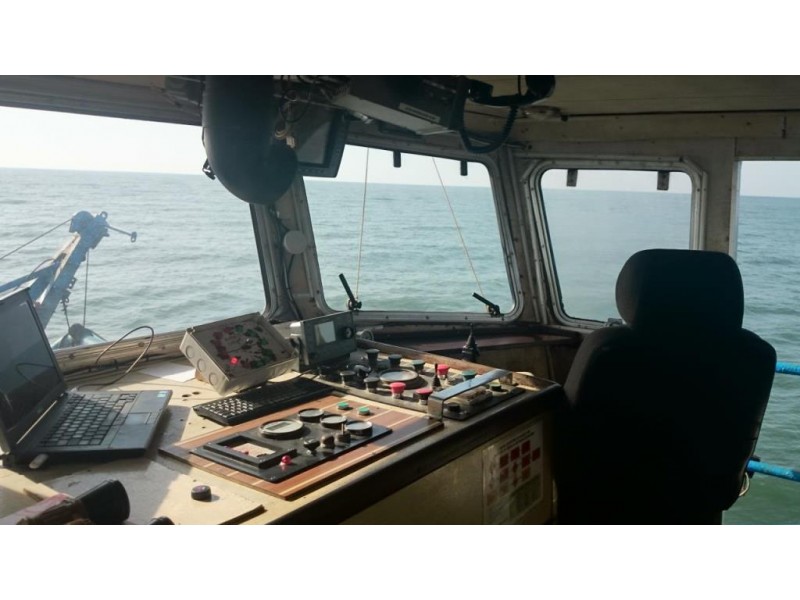

Bridge fully equipped in compliance with Spanish Regulations
OTHER DETAILS
Converted in 1996
Last Dry Dock in 2017
Schottel needs repairs but Owners will deliver the Vessel in full operational condition if sale price is paid.
Hydraulic power pack for pumps Cummins KTA 19, 522 KW
Hydraulic Power Pack for jet pumps Cummins C6 179 KW
It has mechanical sealing

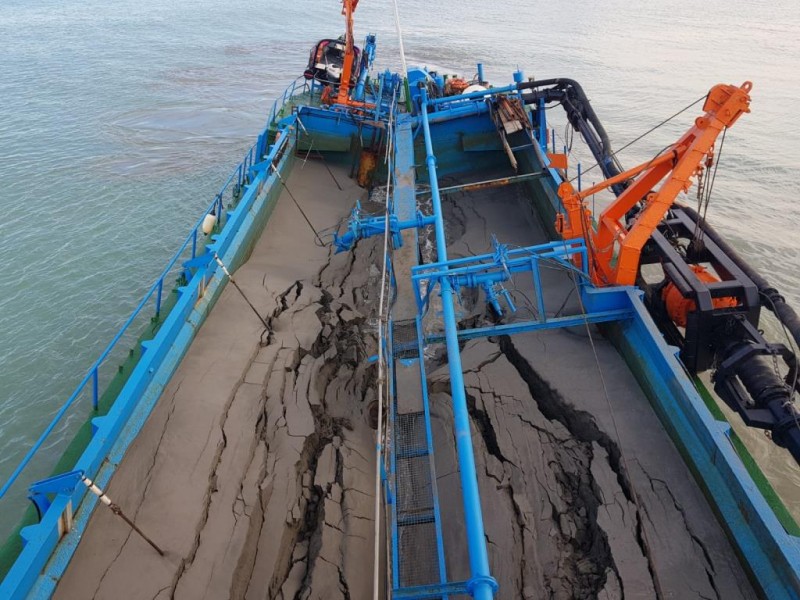

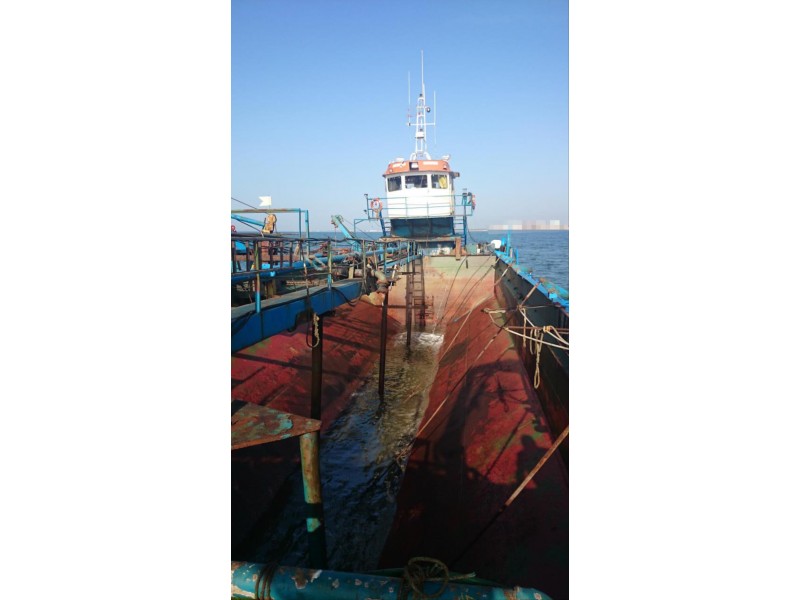

The split hopper is operated hydraulically
Max speeds_ 7 knots loaded
Fuel capacity 36 m3
Fresh water capacity 4 m3
Lub oil capacity 1 m3
Range at sea – Endurance around 30 days
Estimation fuel consumption about 1500-1800 L/day working

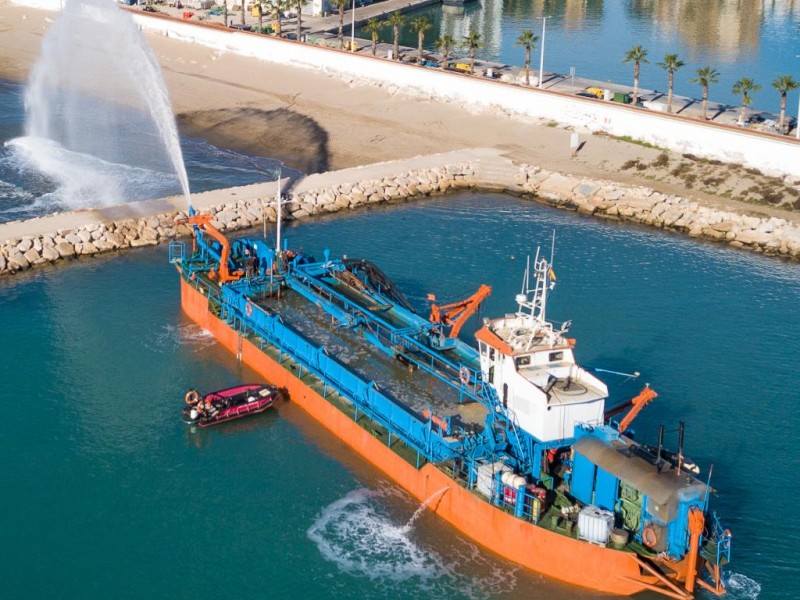

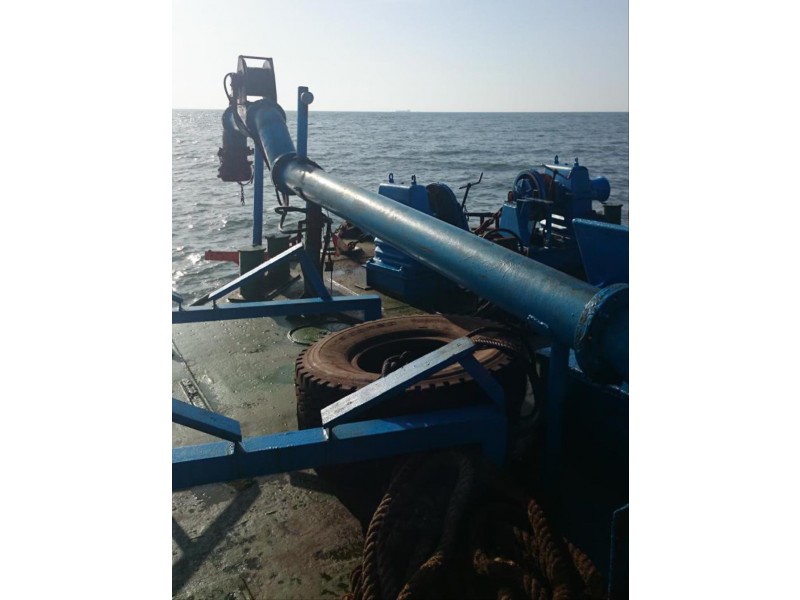

Unload distance by pipe max 1000 metres
Loading time 35-45 minutes
Unloading time (500m pipe) 45-60 minutes
Converted into trailing suction split hopper dredger in 1996.

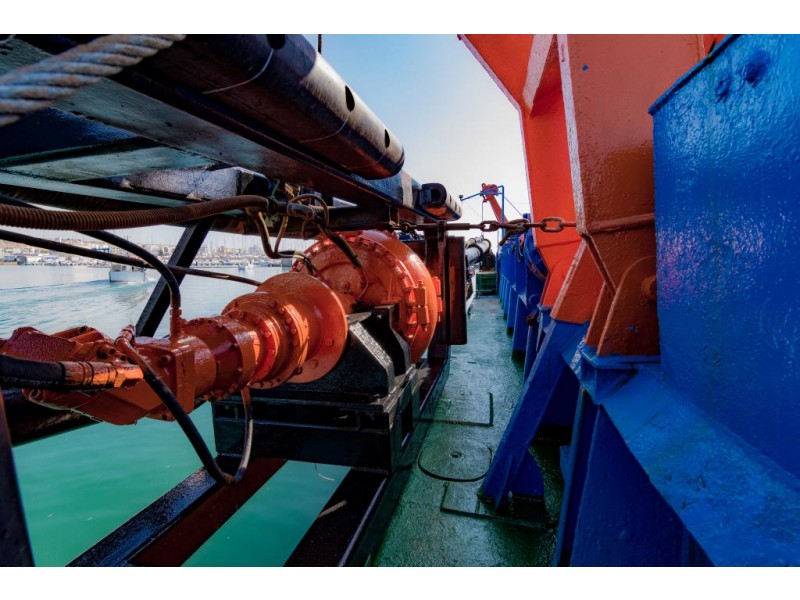

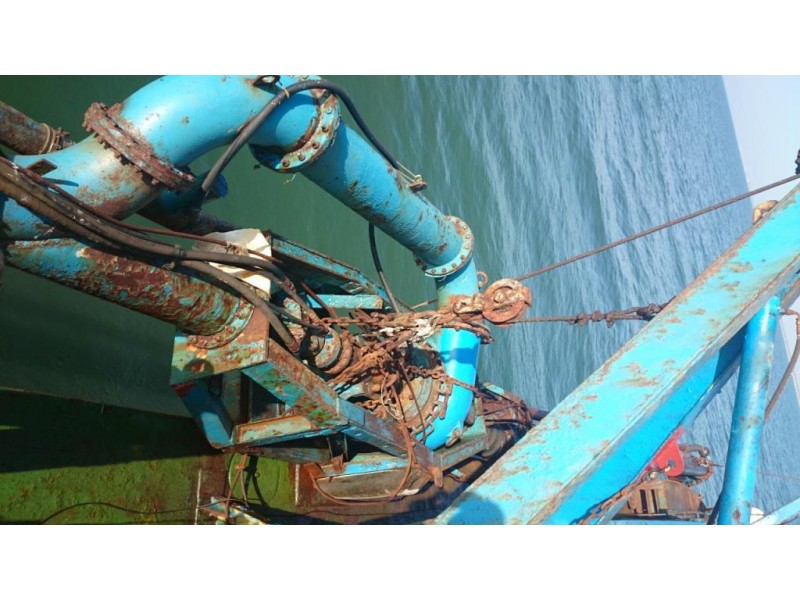

Submerged load pump Warman working with hydraulic engine and discharge pump Bagema with hydraulic engine.
Spent more than 20 years trading in fresh water.
Over flow is hydraulic. Height can be regulated.
