DO0382

Detailed Information

General

Built Year & Place	2001 / UNITED STATES OF AMERICA
Hull Material	Steel
Flag	UNITED STATES OF AMERICA
Class Society and Notation	ABS
Next DD
Next SS	03/2029
Next Annual Survey

Principle Dimensions

Length Overall (m)	50
Length Between Prep. (m)
Breadth (m)	15
Depth (m)	3.2
Draft (m)
NT (tons)
GT (tons)
DWT (tons)

Machinery & Propulsion

Total Power Output (BHP)	N/A
Main Engine(s)	x
Main Propulsion System
Auxiliary engine(s)
Propellers
Speed Maximum (knots)
Speed Cruising (knots)

Cargo & Tank Capacities

Deck Cargo (tons)
Deck Area (m2)
Deck Load (tons/m2)
Fuel Tanks Capacity (m3)
Fresh Water Tanks Capacity (m3)
Ballast Tanks Capacity (m3)

Additional Information

Last Drydocked in May 2024. New Anodes – blasted and painted entire Hull. All voids and fuel tanks were cleaned and inspected by ABS.

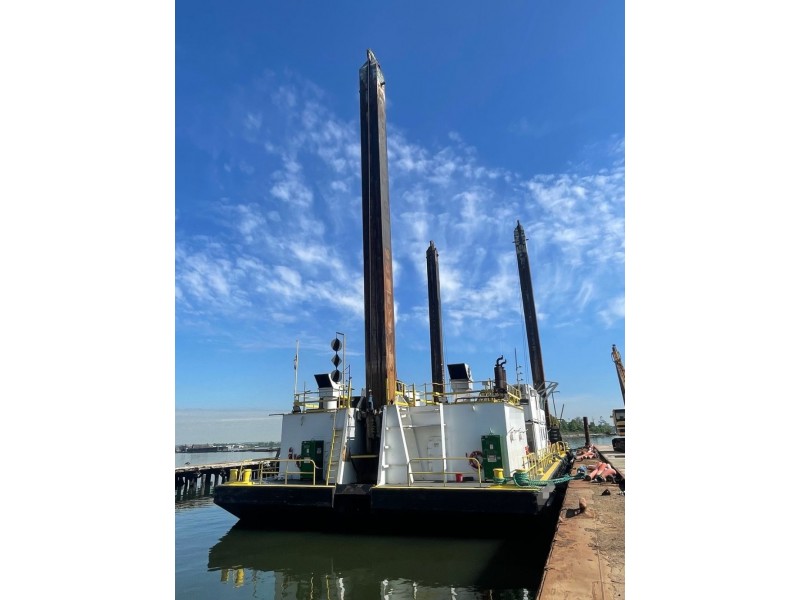

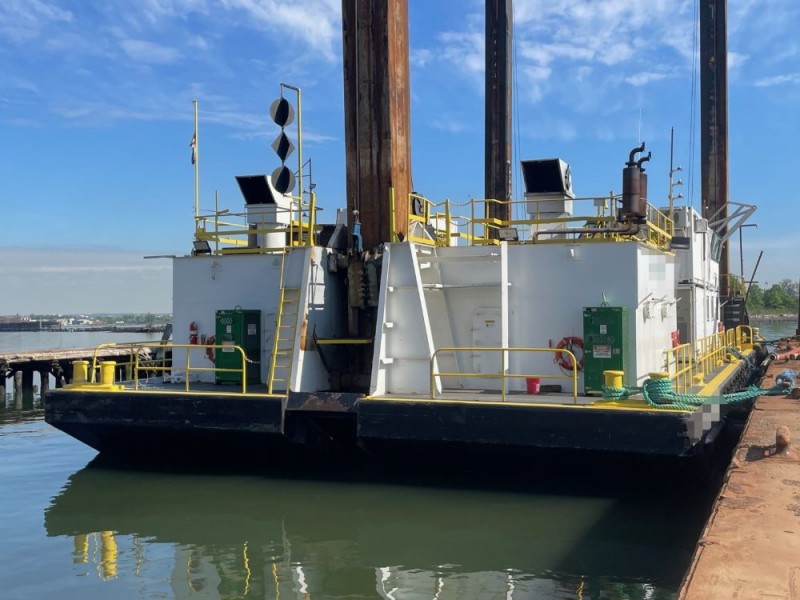

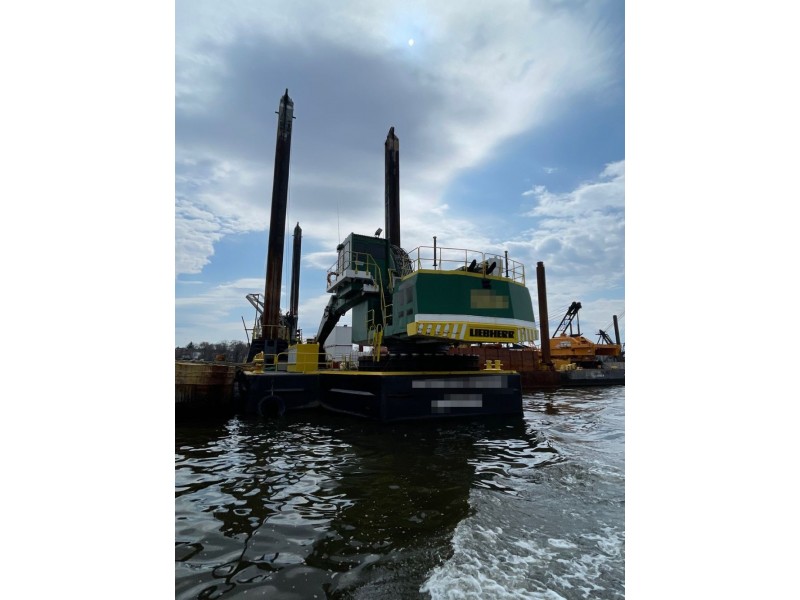

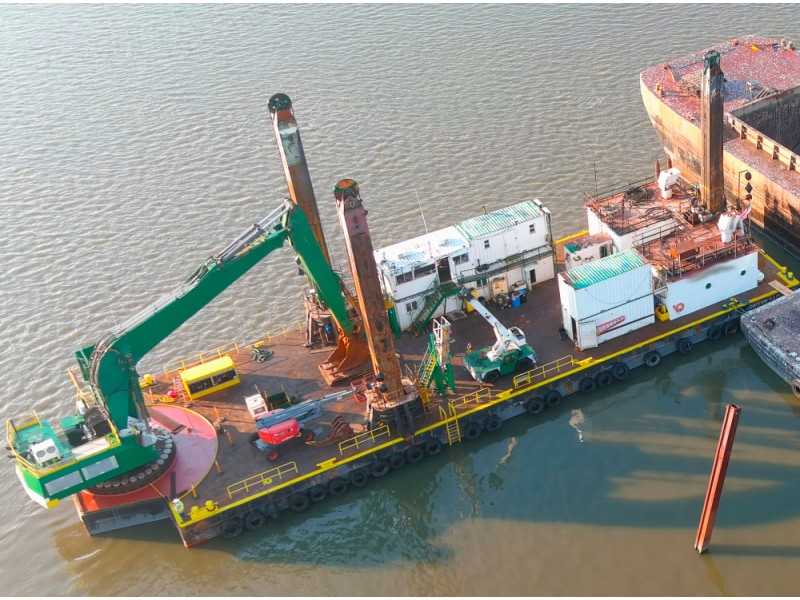

(2) 48” x 95’ Square Spuds Port and Starboard and (1) 48” x 95’ Square Aft Walking Spud.

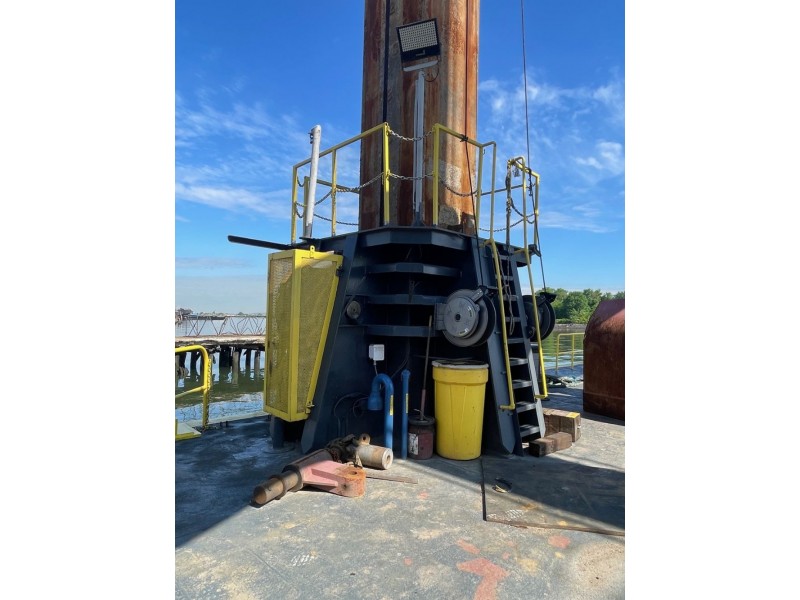

Spuds are operated by (3) Timberland 1-2200-500DH Hydraulic Winches.

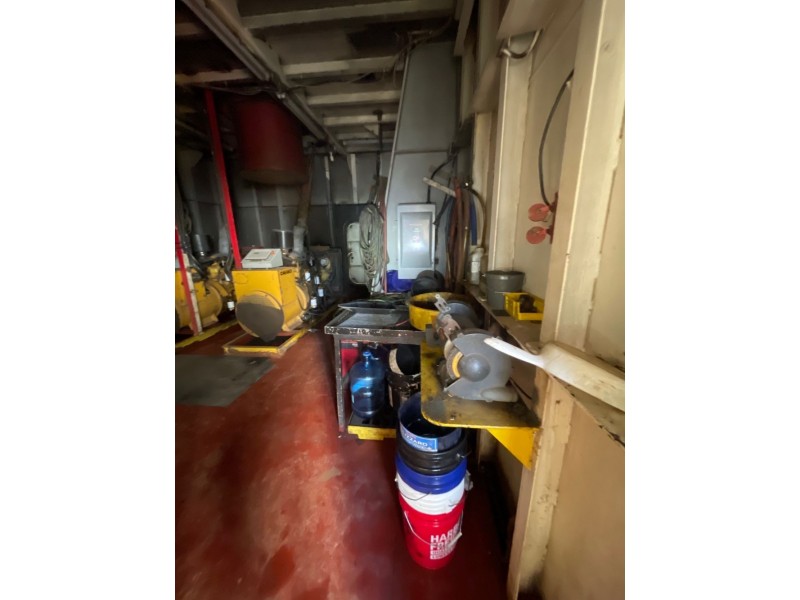

(2) Magna Plus Generators Model # 310SC6204-1 with John Deere Engines.

(2) Fuel Oil Tanks at 14,000 Gallons each. Generator and HPU Day Tanks at 945 Gallons each. (2) Fresh Water at 7600 Gallons Each. Lube Oil Tank at 8300 Gallons. Hydraulic Oil at 4150 Gallons. Waste il at 4150 Gallons. 994 Fuel Tank at 1000 Gallons.

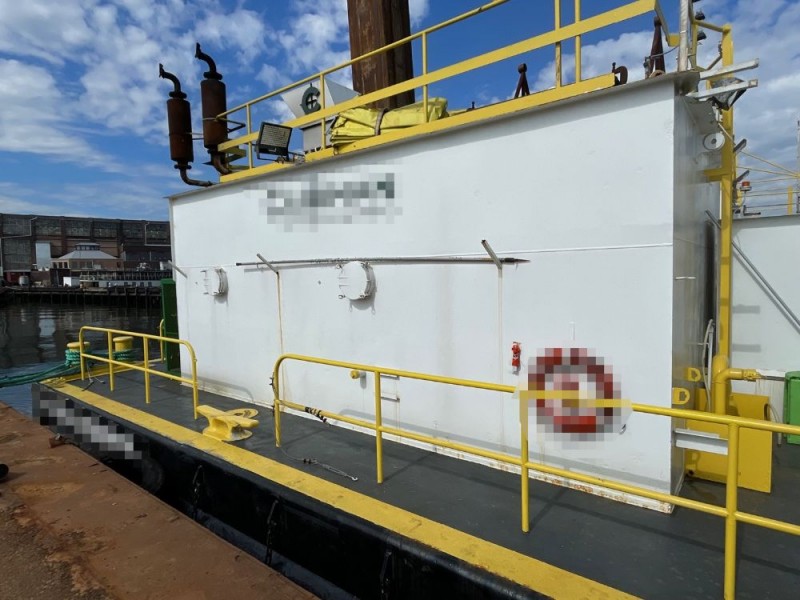

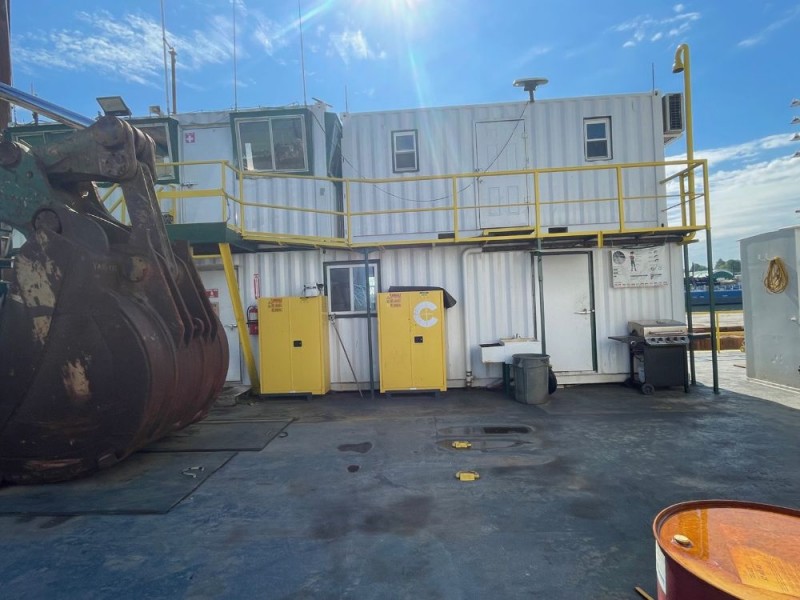

Dredge is complete with Captains Facility, Mates Shack, Galley and Changing Rooms. MSD System

EXCAVATOR:

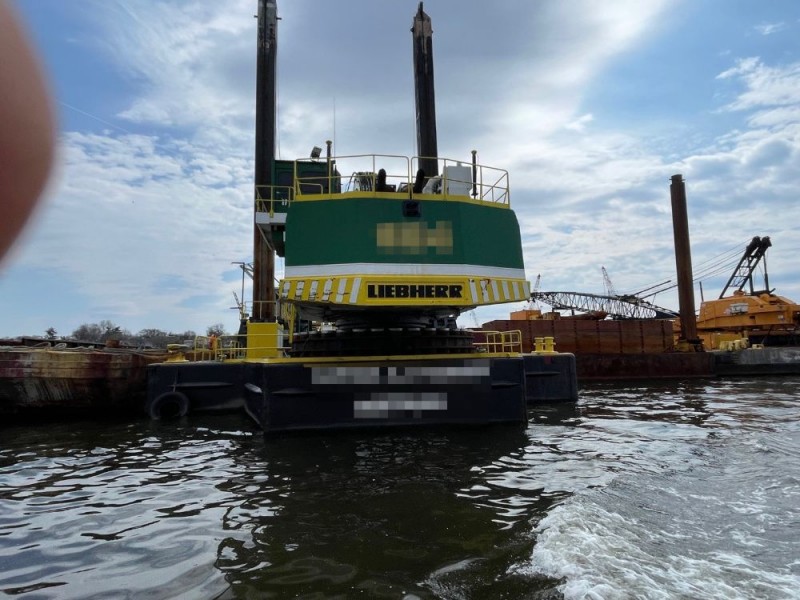

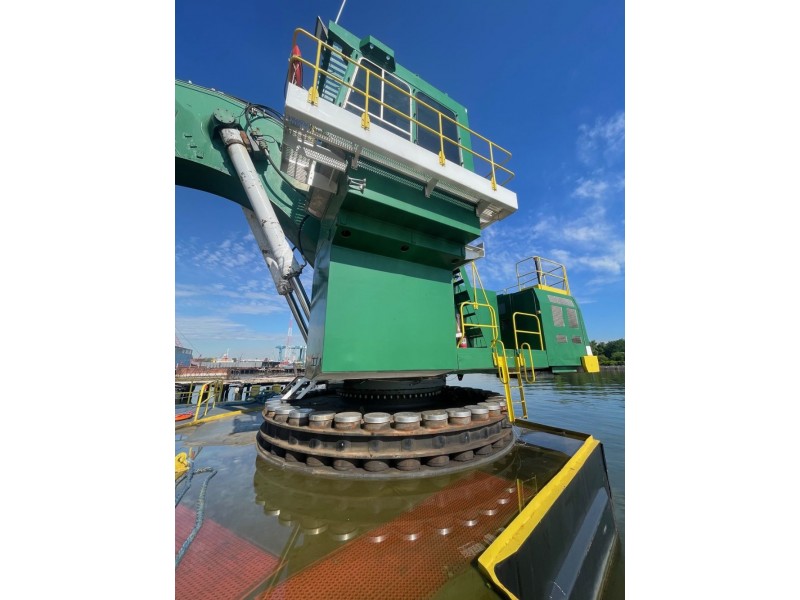

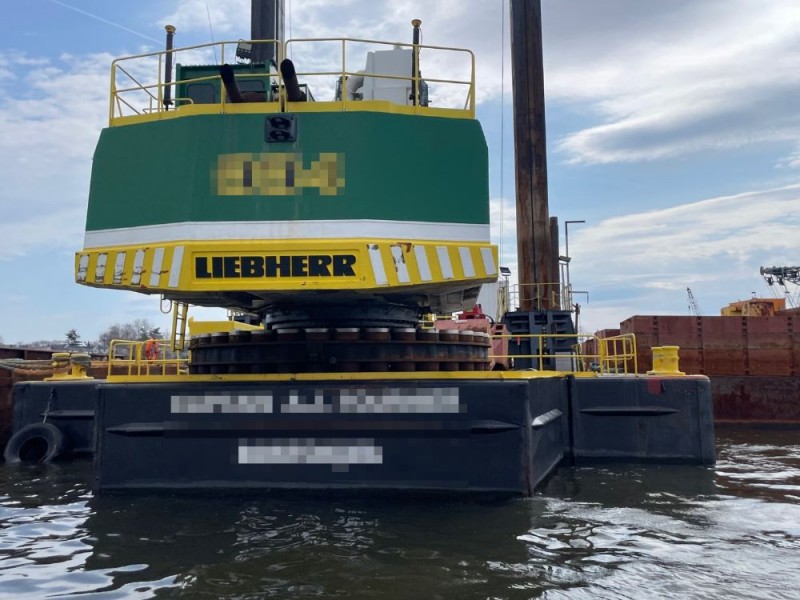

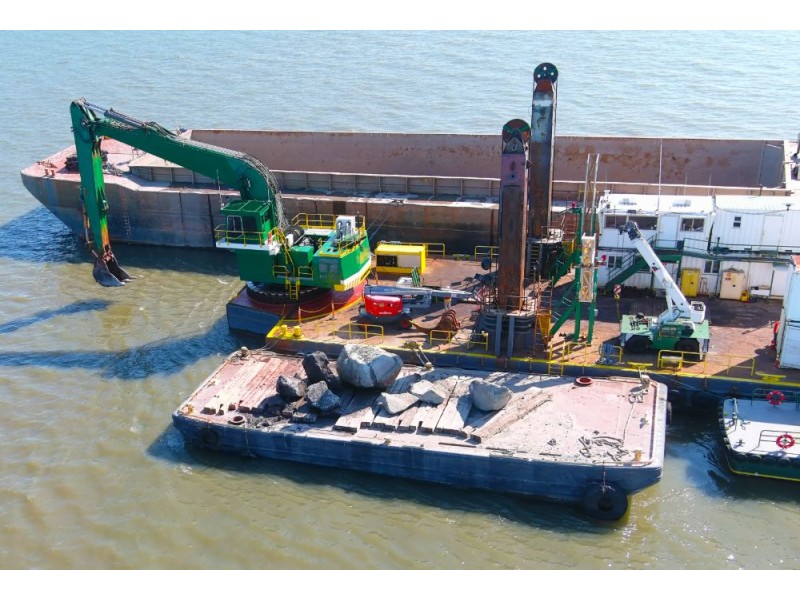

2002 Liebherr P994 Hydraulic Excavator Serial Number 260-11974 – this machine had a complete rebuild in 2021. Including engine, all pumps and wiring. Complete details on request.

Engine: Cummins KTTA38-C 1350. 12 Cylinder Diesel Engine 1256 HP/937 kW @ 2100 RPM

Booms: (1) at 14 Meter and (2) at 16 Meter.
Sticks: (1) at 4 Meter, (1) at 26 Meter and (2) at 32 Meter.

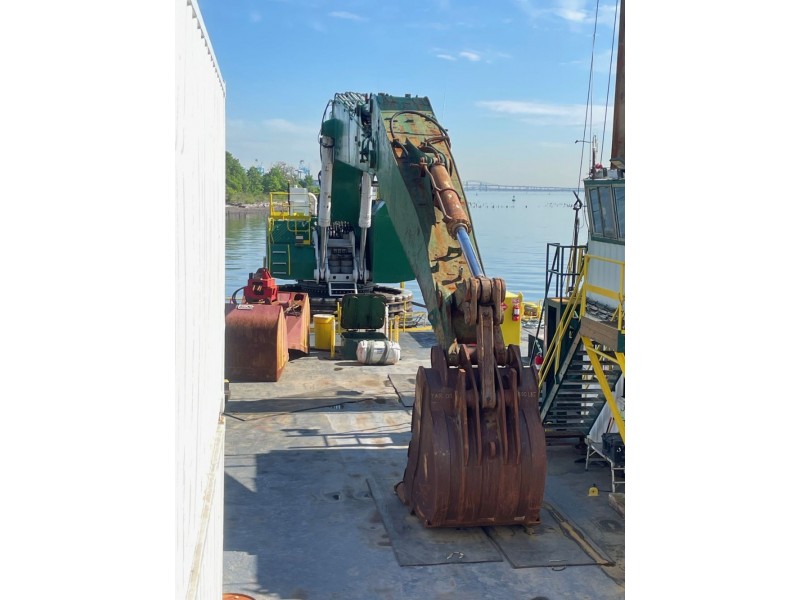

Buckets and Attachments: (1) 3.5 Cubic Meter Rock Bucket / 26- and 32-Foot Sticks, (1) 5 -Yard Liebherr, (1) 7-yard Liebherr, (2) Each 5.5 Cubic Meter Yarwood / 26- and 32-Foot Sticks, (1) Each 9.0 Yard 995 Liebherr / Converter to 13 Foot Stick, (1) each 9.0 Yard Komatsu / Converter to 13 Foot Stick, (1) Each 10.0 Yard Esco / Converter to 13 Foot Stick, (1) Each Ripper single Tooth / 26- and 32-Foot Sticks

SURVEY EQUIPMENT:
The Dredge utilizes HYPACK’s Dredgepack software as its primary digging guidance system. This software has been enhanced with custom developed drivers, which interface with digital rotation sensors mounted on each of the excavator’s appendage points—namely the boom, stick, and bucket.
Positioning data, both vertical and horizontal, is provided by a Trimble RTK (Real-Time Kinematic) GPS system installed on the excavator. All sensor inputs are transmitted to the Dredgepack computer, enabling the operator to view real-time plan and profile (side) views of the excavator’s position and movements.
Additionally, design files and topographic/bathymetric data can be loaded into the system. This functionality helps the operator accurately monitor and control material removal according to project specifications.

SPARE PARTS:
1 Spare PTO Gear Box Liebherr
2 spare Main Pump Liebherr
2 Spare P3 Pumps Liebherr
2 Spare Swing Gears
1 Swing Pump
1 Left Control Valve Body
1 Right Control Valve Body
Many Attachment Bushings and Pins
Many spare hydraulic hoses
1 Spare 994 Radiator
2 Spare Oil Cooler
4 Spare Boom Cylinders
4 Spare Sick Cylinder
2 Bucket Cylinders / 26- and 32-Foot Sticks
2 Spare Bucket Cylinders / 13 Foot Stick
4 each spare spud motors
6 each spare spud brakes
