DO0403
For Sale From Direct Owners
| Reference | DO0403 |
| Type | Offshore - AHTS |
| Class | Croatian Register Shipping |
| Build year / place | 2002 / SINGAPORE |
| Length (m) | 48 |
| Breadth (m) / Depth (m) | 13 / 6 |
| NT (tons) / GT (tons) | 306 / 1021 |
| Engine(s) power (BHP) | 8000 |
| Engine(s) | 2 x MaK 6M32 @ 600 rpm c/w |
| Location | MIDDLE EAST |
| Price | 4,000,000 USD |
Interested in this vessel?
Please, feel free to contact us at any time.
We remain at your entire disposal.
Detailed Information
General
| Built Year & Place | 2002 / SINGAPORE |
| Hull Material | Steel |
| Flag | CAMEROON |
| Class Society and Notation | Croatian Register Shipping Unrestricted Service |
| Next DD | |
| Next SS | 03/2026 |
| Next Annual Survey |
Principle Dimensions
| Length Overall (m) | 48 |
| Length Between Prep. (m) | |
| Breadth (m) | 13 |
| Depth (m) | 6 |
| Draft (m) | 52 |
| NT (tons) | 306 |
| GT (tons) | 1021 |
| DWT (tons) | 700 |

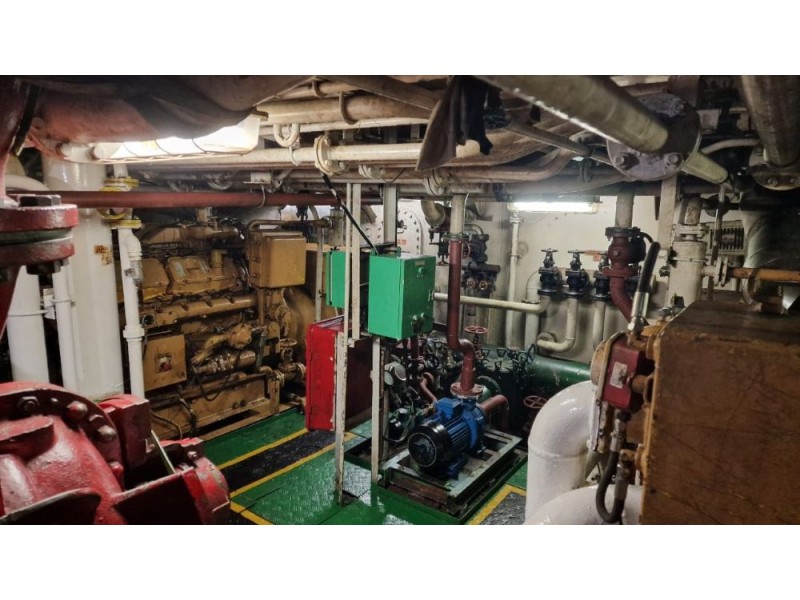

Machinery & Propulsion
| Total Power Output (BHP) | 8000 |

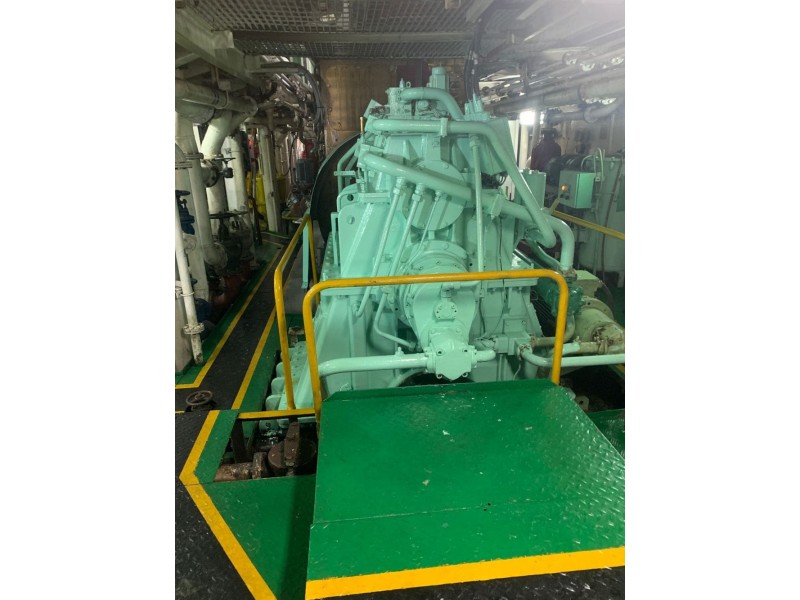

| Main Engine(s) | 2 x MaK 6M32 @ 600 rpm c/w |
| Main Propulsion System | 2 x 3500 mm diameter, 4 Blades, CPP |
| Auxiliary engine(s) | 1 X 99 KW , CAT3306 DITA,3 X 400 KW , CAT 3412 |
| Propellers | |
| Speed Maximum (knots) | |
| Speed Cruising (knots) | 13 |
Cargo & Tank Capacities
| Deck Cargo (tons) | |
| Deck Area (m2) | |
| Deck Load (tons/m2) | |
| Fuel Tanks Capacity (m3) | 780 |
| Fresh Water Tanks Capacity (m3) | 229 |
| Ballast Tanks Capacity (m3) |
Additional Information
Bow Thruster: 1 x 500 bhp BRUNVOLL type CPP – thrust 6.3 T
Wire Storage Reels: 2 x 9.1T line pull at 0.51nVimin hydraulic wire storage reals of 1200m x 60mm dia.1 x 18.2T tine pull at 0-21rrihnin hydraulic wire storage reel with capacity of 1200m x 60mm dia SWR,One storage reel will contain 1200 M X 60 MM of Spare towing wire and one reel should have various sizes of pendant wires
BP 112 tons
Towing Pins & Shark jaws: KARM FORK combination unit with 2 towing pins & 2 shark jaws
Anchor Windlass: Hydraulic 8.5T@ 13 m/min BRATVAAG
Anchors: 2 x 1440kg slockless anchors
Anchor chain: 2 x 275m x 34mm diameter U2 steel stud link chain

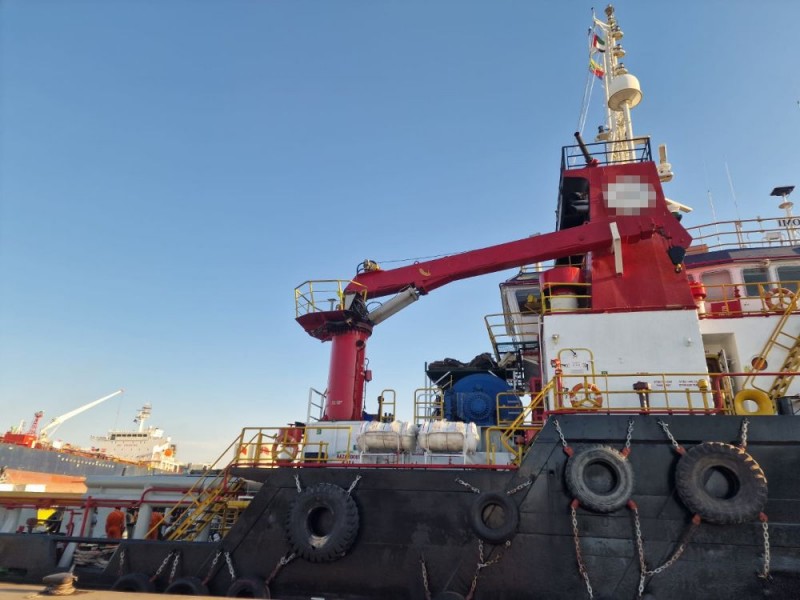

Crane: North American Crane model MCT 2•2568.capacity 2.7T @ 20.7m / 10T @ 7.6m

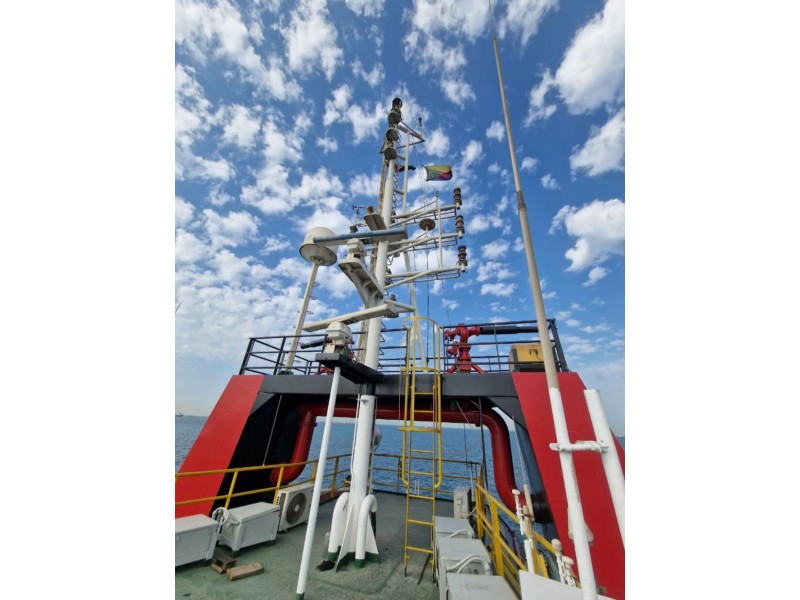

Radar: 2 x IMO approved X. band marine radar c/w 6.5ft scanner and performance monitor. FURUNO model FR2115 (#1)&, FR- 1510 MIKIII (#2)
SSB: Radio console, FURUNO RC- 1500-IT-24V DC/240V DC/240V AC with manual cover to emergency supply antenna feeder trough Insulators. c/w DSC & NBDP to meet GMDSS requirements FURUNO model FS-1562′-25 (250W), 200
CHS Area A3
VHF: 2 x VHF/FM multi-channel marine radio telephones FURUNO model FM-8.500- 25W
Gyro 8 Automatic Pilot: 1 set-fitted. Gyro-Tokimec TG6000. Autopilot-Fururio Model FAP-330
Main Engines – 22 M/T MGO and 80 litres lube oil per 24 hours consumption @ full power.
14 T MGO and 60 litres lube oil per 24 hours@ economic cruising speed of 10 knots
Generator- 800 litres MGO and 10 litres lube oil consumption per 24 hours

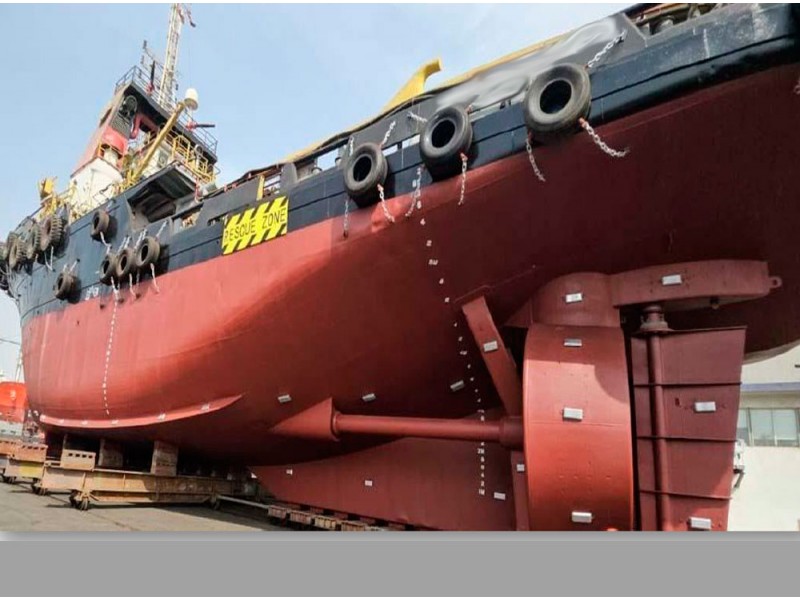

Propulsion- 2 x 3500 mm diameter, 4 Blades, CPP with Kort nozzle

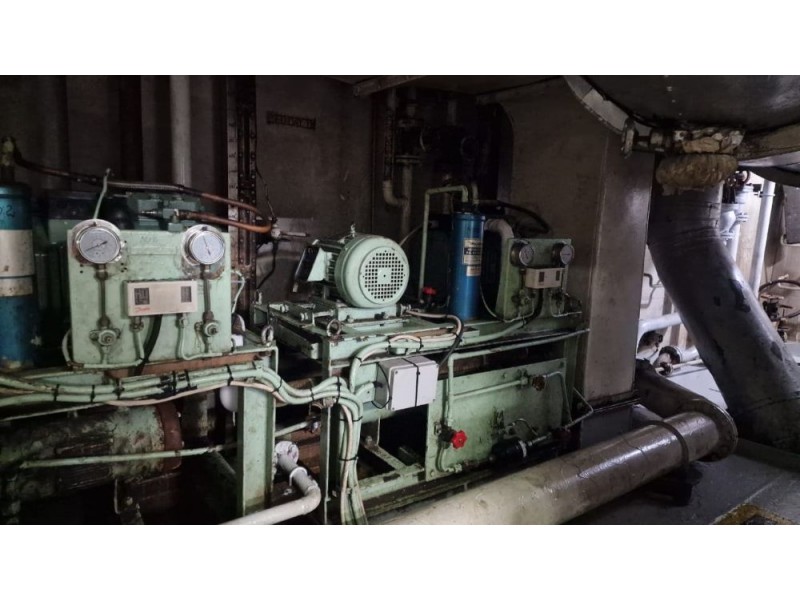

Steering Gear: Electro hydraulic. 11 Ton torque
Fuel oil purifier: 1 x SJ10F Mitsubishi self-cleaning fuel oil purifier
Lube• oil purifier: 1 x –SJ15F Mitsubishi self-cleaning lube
Weather Facsimile: 1 x FURUNO FAX-207

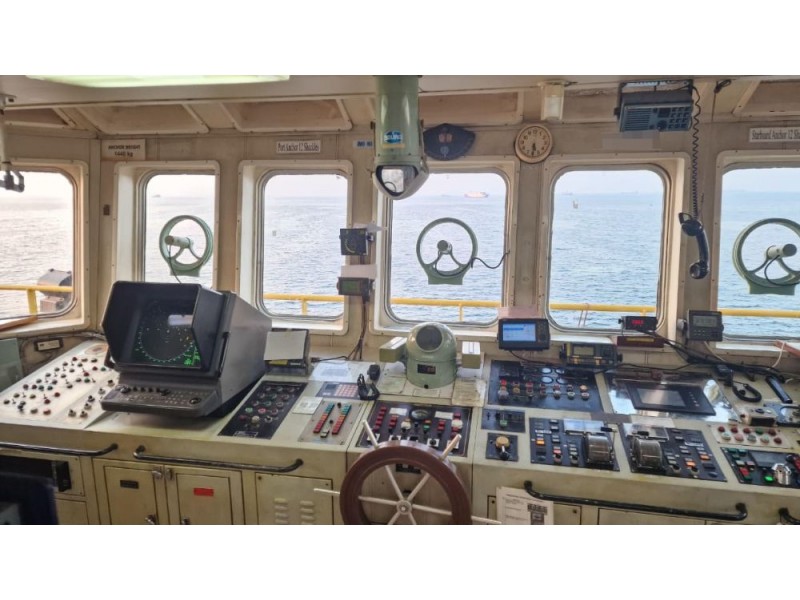

Other Navigation/ Communication Equipment
INMARSAT-C, EPIRB, Radar Transponder, P.A. System c/w Fog Horn Signal, Navtex receiver. GPS Navigator, 1 x Satellite FBB Tel & Email, Echo Sounder, (colour). 2 VHF walkie talkie
Dispersant Booms: 2 x 8m dispersant booms fitted
Fire Monitors: 2 fixed foam/water fire monitors of 10000 liters/min each @ 130m head capacity. 1 x Fire Pump of 1400rn’ /hour each
Pondering: Flat bar doubler plates of 30 x 350mm cross section welded to side shell. & Tyre fenders around
Rescue Boat: 1 x 6 men
All details are given in good faith and are believed to be accurate but no warranty of accuracy or completeness or suitability for purpose is either stated or implied. Prices are subject to change without notice.
