DO0406
For Sale From Direct Owners
| Reference | DO0406 |

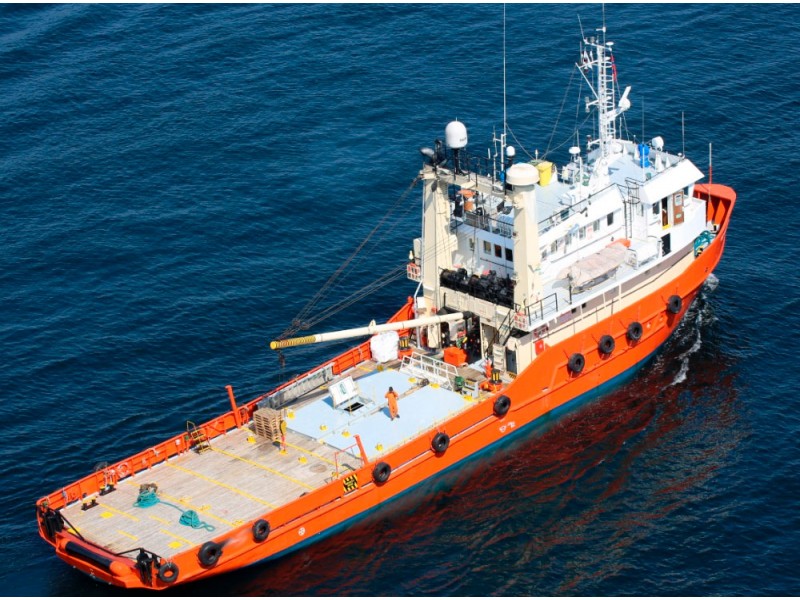

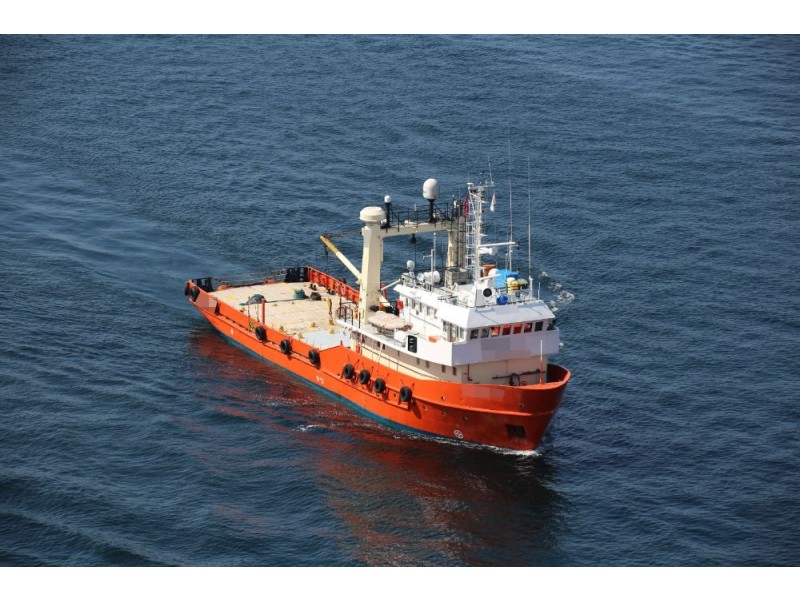

| Type | Offshore - Supply Support Vessel |
| Class | DNVGL 100 A5 |
| Build year / place | 1979 / NORWAY |
| Length (m) | 42 |
| Breadth (m) / Depth (m) | 9.2 / 4.2 |
| NT (tons) / GT (tons) | 116 / 387 |
| Engine(s) power (BHP) | 1350 |
| Engine(s) | 1 x Wichmann 4 AXA @ 375 rpm |
| Location | EAST MEDITERRANEAN |
| Price | POA |
Interested in this vessel?
Please, feel free to contact us at any time.
We remain at your entire disposal.
Detailed Information
General
| Built Year & Place | 1979 / NORWAY |
| Hull Material | Steel |
| Flag | CYPRUS |
| Class Society and Notation | DNVGL 100 A5 Offshore Supply Vess |
| Next DD | 05/2027 |
| Next SS | 03/2029 |
| Next Annual Survey |
Principle Dimensions
| Length Overall (m) | 42 |
| Length Between Prep. (m) | |
| Breadth (m) | 9.2 |
| Depth (m) | 4.2 |
| Draft (m) | 3.67 |
| NT (tons) | 116 |
| GT (tons) | 387 |
| DWT (tons) | 471 |
Machinery & Propulsion
| Total Power Output (BHP) | 1350 |
| Main Engine(s) | 1 x Wichmann 4 AXA @ 375 rpm |
| Main Propulsion System | 1 Propeller (variable pitch) in Combined Nozzle Rudder |

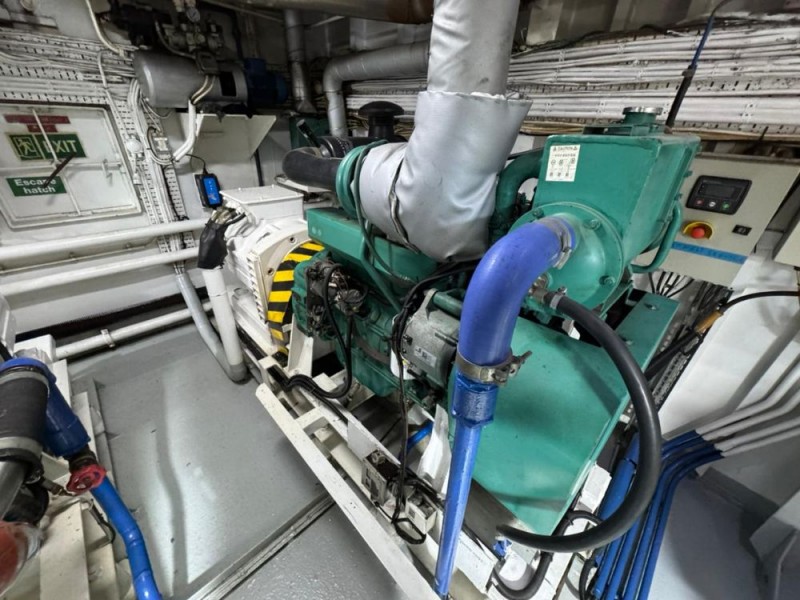

| Auxiliary engine(s) | 3 X 90 KW , Cummings 6BT 5.9 |
| Propellers | |
| Speed Maximum (knots) | 10.5 |
| Speed Cruising (knots) |
Cargo & Tank Capacities
| Deck Cargo (tons) | |
| Deck Area (m2) | |
| Deck Load (tons/m2) | |
| Fuel Tanks Capacity (m3) | 136 |
| Fresh Water Tanks Capacity (m3) | 36 |
| Ballast Tanks Capacity (m3) |
Additional Information
Operation World Wide
Endurance 9,500 miles (45 days)
Freeboard max draft 0.53m
TANK CAPACITIES & DISCHARGE RATES
Marine Diesel 136m3 Discharge rate 14.1m3 / hour
Fresh Water 36.4m3
Ballast 61.5m3

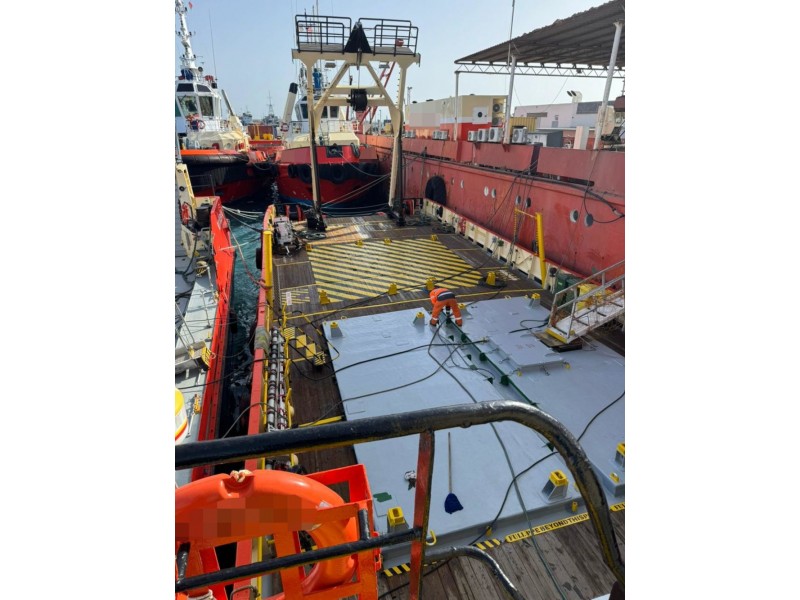

DECK EQUIPMENT

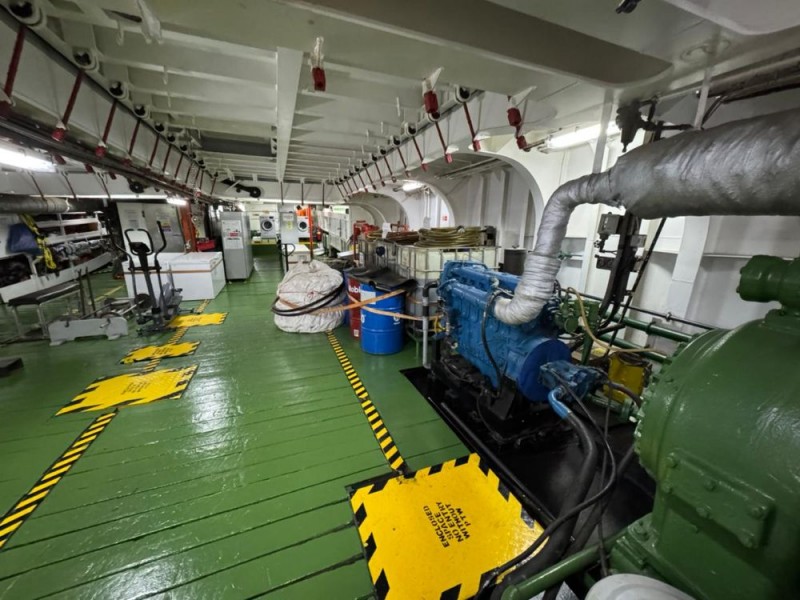

Under Deck Hold 18m x 8m, 2.62 m high
Deck Area 198m² (22.5 m x 8.82 m) (able to load 4 x 20’’ containers)
Hatch Opening 2 hatches @ 7m x 2.8m each, Able to accommodate 2 x 20 feet containers of 8 feet high
Hold Capacities 377m³

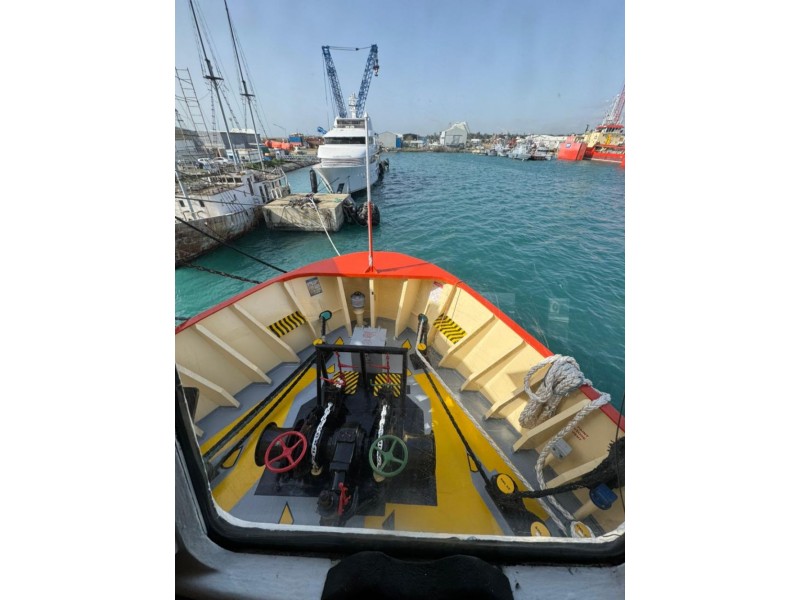

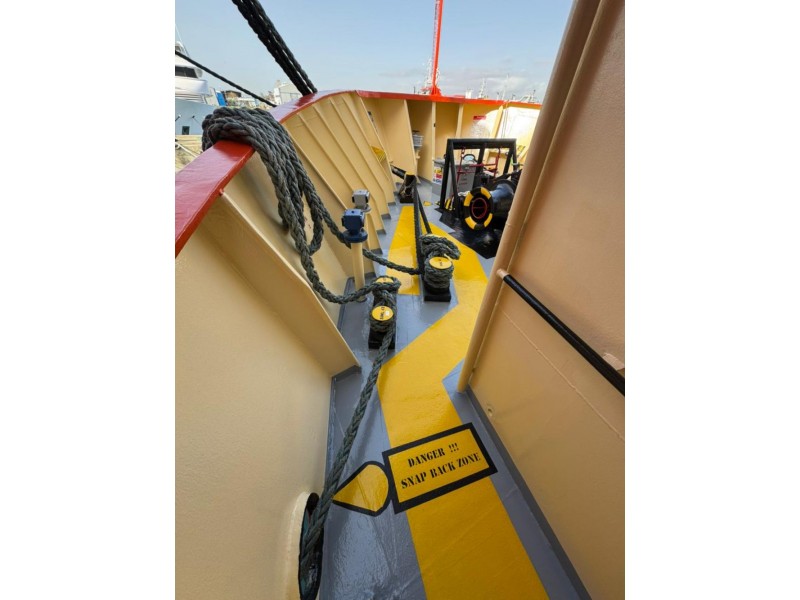

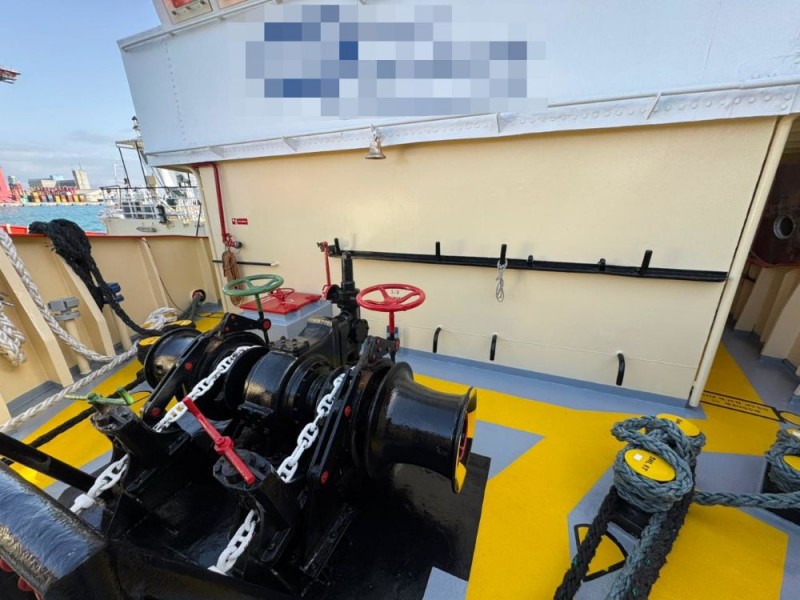

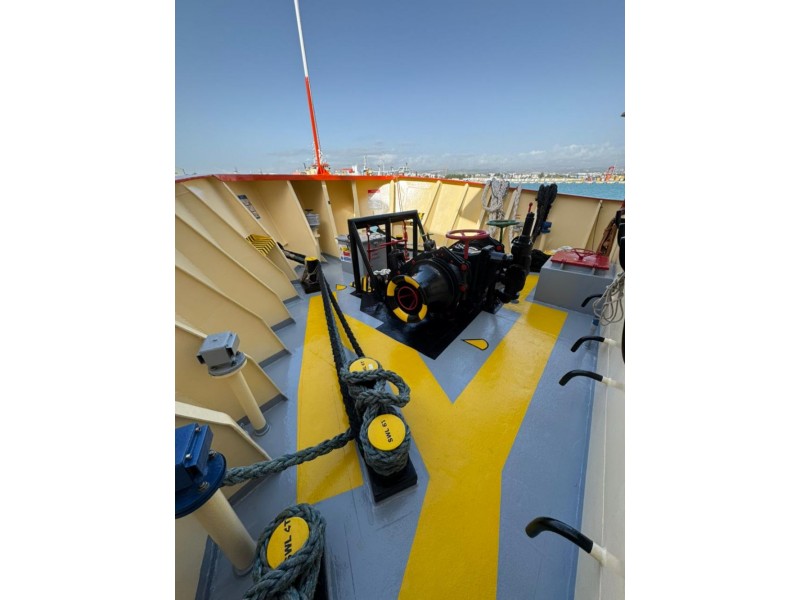

Capstan 2 X Brattvaag Hydraulic SWL 6 tons
Deck Crane 7.7t @ 9.7m

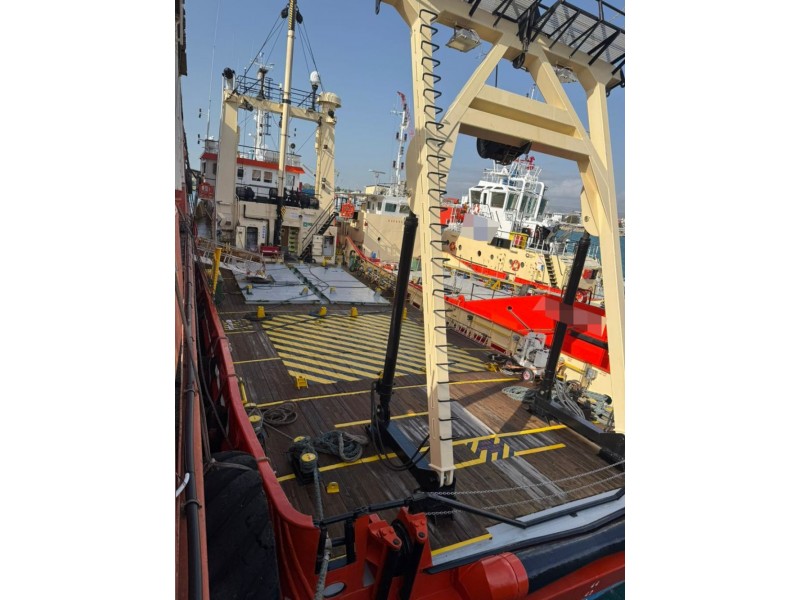

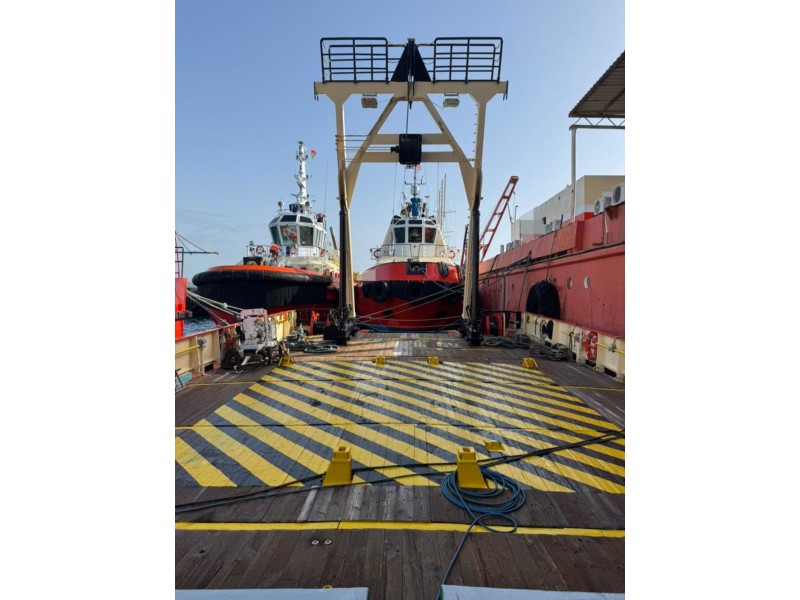

A-Frame Hydraulic – 10t SWL (when fied)
Deck Cargo Capacity 70t
Dacon Scoop Available on request

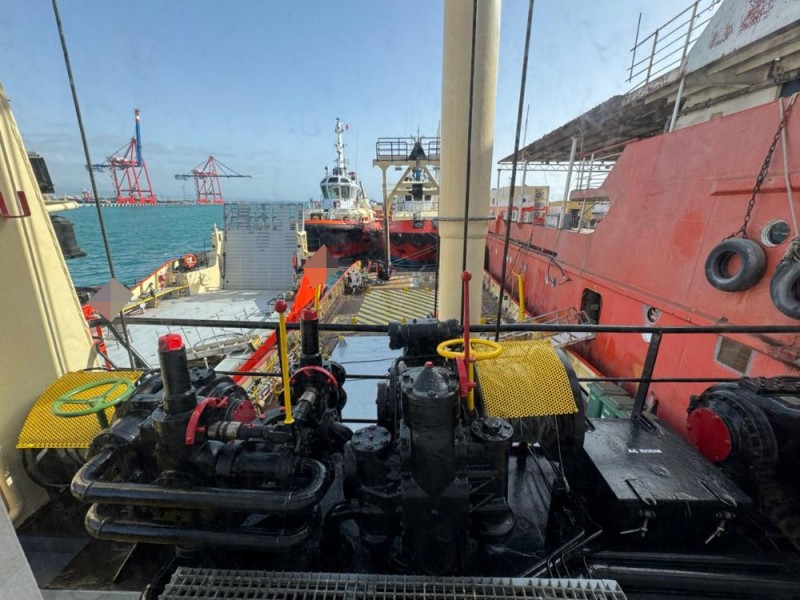

Deck Winch Brattvaag Hydraulic SL 12, 50 t Breaking Power Inner Layer, 25 t Breaking Power Outer Layer
Stern Roller 6m with 6 t SWL
Electrical Power on Deck 230V / 50Hz Three Phase
Bow Thrusters 1 x Brunvoll Tunnel 75kw
Stern Thruster 1 x Celc Hydraulic 107kw
NAVIGATION EQUIPMENT
Radars 1 x JRC JMR—5410, 1 x SIMRAD R3016 12U/6X, 12kw XBand, R3000 PSU
AIS STN Atlas DEBEG 3400
Gyro Compass Anschutz STD 22
Autopilot Anschutz Pilotstar D
Echosounder Echograph 9205
GPS 1 x Trimble GPSNT 200, 1 x MX Marine MX420 DPS
Navtex JRC-NCR-300A
Depth Recorder STN Atlas Echograph 9205

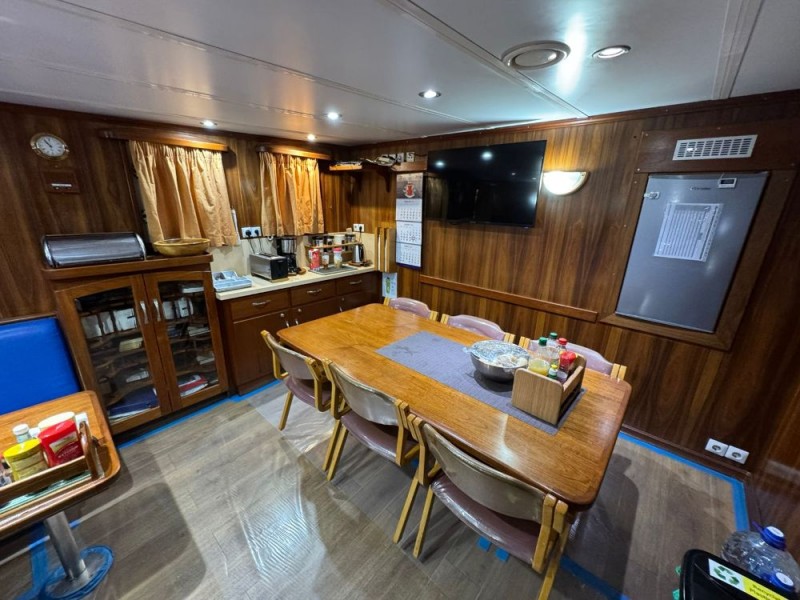

ACCOMMODATION
Total Accommodation 18 bunks

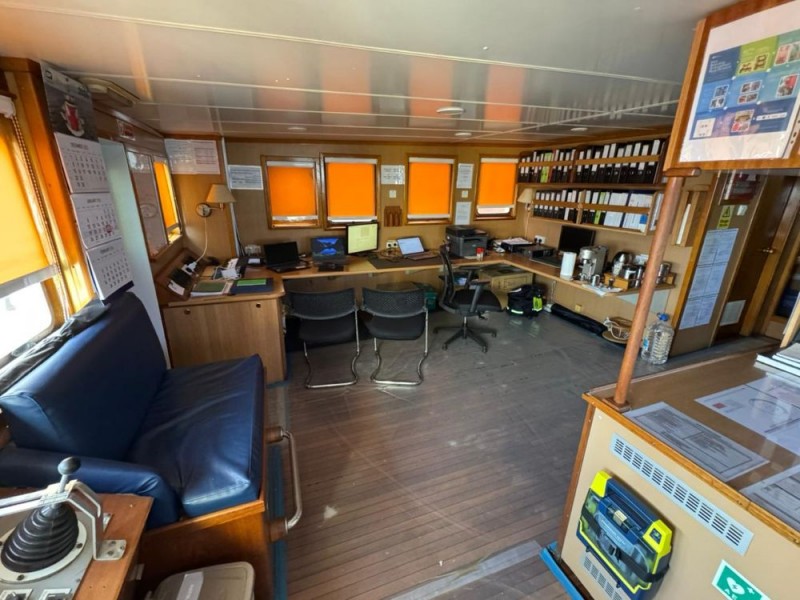

Other Facilities Survey Room – Dedicated 20 m² aft of the bridge area
COMMUNICATION
Primary V3- KVH (adaptable to client requirements)
Secondary Iridium Open Port
GMDSS As Per GMDSS A1, A2 and A3
