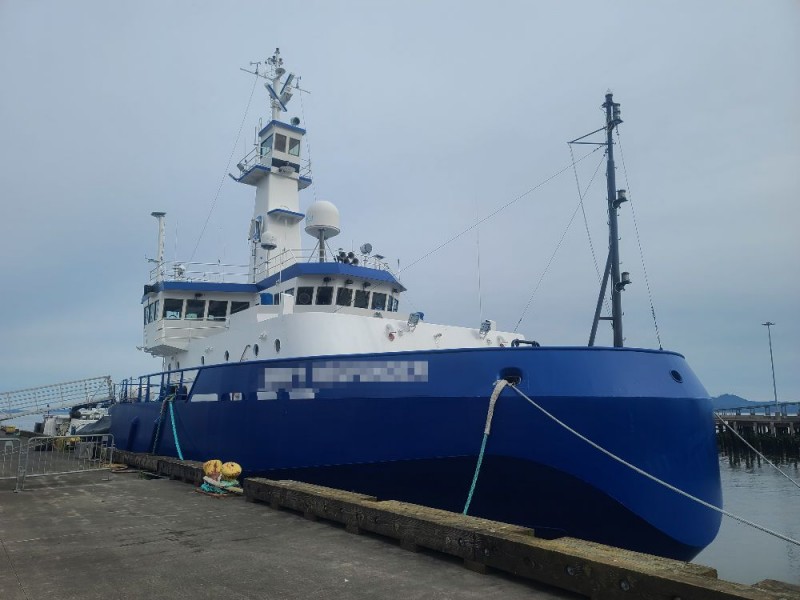

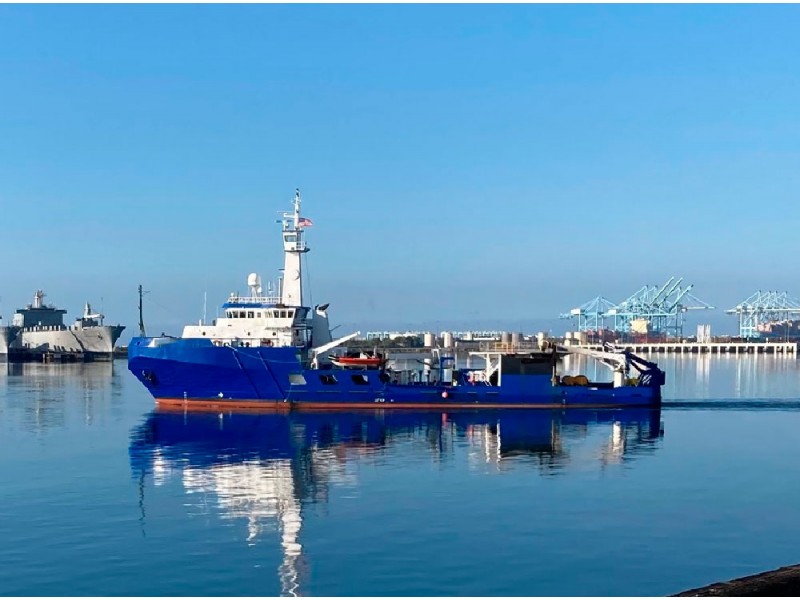

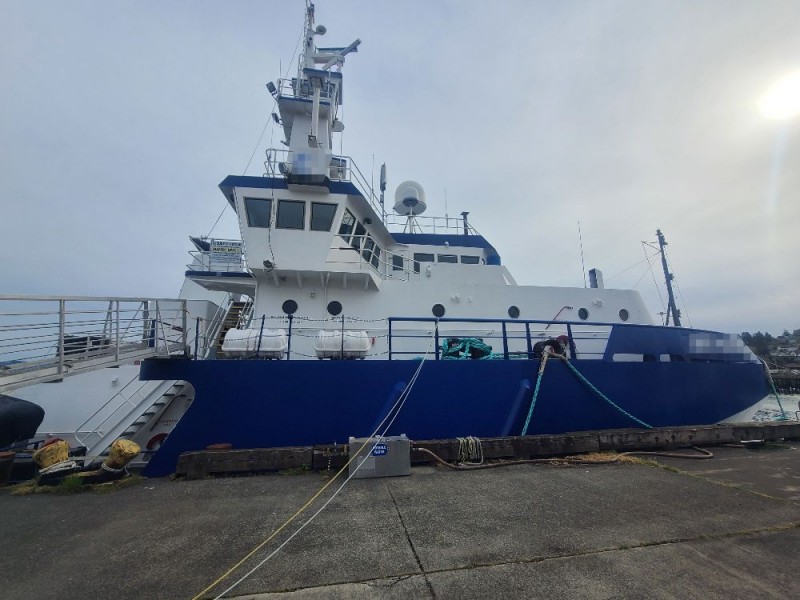

DO0415

Detailed Information

General

Built Year & Place	1993 / UNITED STATES OF AMERICA
Hull Material	Steel
Flag	UNITED STATES OF AMERICA
Class Society and Notation	ABS Unrestric. Serv.
Next DD	05/2028
Next SS	05/2028
Next Annual Survey

Principle Dimensions

Length Overall (m)	60
Length Between Prep. (m)
Breadth (m)	13.4
Depth (m)
Draft (m)	3.9
NT (tons)
GT (tons)	1335
DWT (tons)

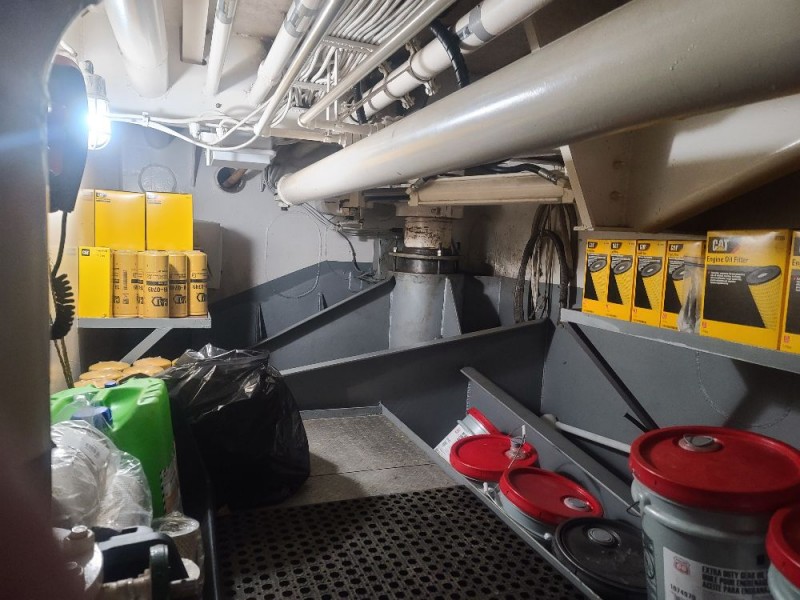

Machinery & Propulsion

Total Power Output (BHP)	3000

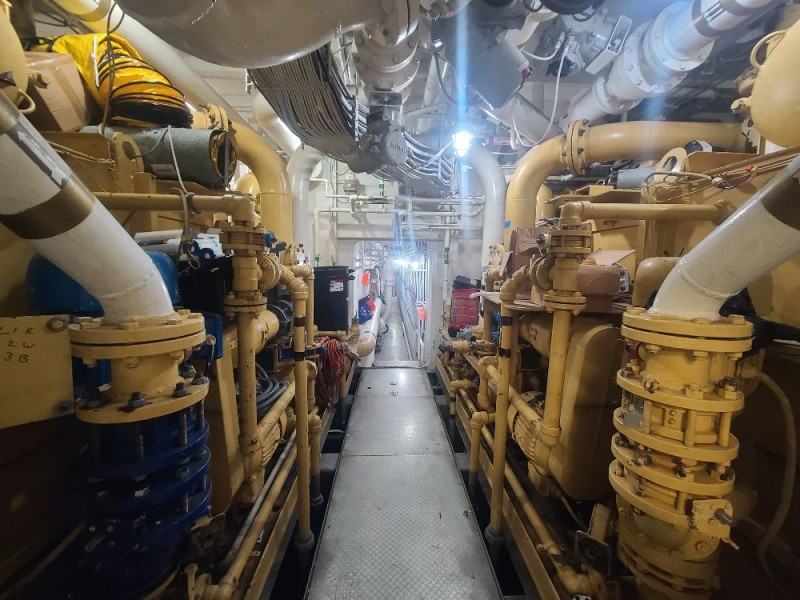

Main Engine(s)	2 x Caterpillar Model 3512 TA
Main Propulsion System	Two 4 Blade Fixed Pitch Propellers
Auxiliary engine(s)	3 X 250 KW , Caterpillar Diesel Model 3406 TA 460 VAC,
Propellers	2
Speed Maximum (knots)	12
Speed Cruising (knots)	10.5

Cargo & Tank Capacities

Deck Cargo (tons)
Deck Area (m2)
Deck Load (tons/m2)
Fuel Tanks Capacity (m3)
Fresh Water Tanks Capacity (m3)
Ballast Tanks Capacity (m3)

Additional Information

Draft Light 8.78 – (ft.) Lightship
Max Free Board 9 ft. (1.2 m) – Tropical Loadline

Registered Tonage 488 tons
Loaded Displacement 24215 Long tons
Lightship Displacement 1217 Long tons

Bow Thruster 1 ea. Caterpillar Model 3406 TA Tunnel Thruster 490 hp
Main Generators 3 ea. Caterpillar Diesel Model 3406 TA 460 VAC, 3-phase, 250 kW generators

PRINCIPLE FEATURES
Economic Endurance 30 Days
Maximum Range nm 7500
Rudder 8ft Rudders
Bollard Pull N/A
Number of Propellers 2 Each Fixed Pitch
Additional Thrusters 1 Bow Thruster
Jones Act Compliant
Crew 11 Total
Client Berthing 27 Total
Crew Nationality United States Citizens
Fuel Low Sulfur No. 2 Fuel Oil

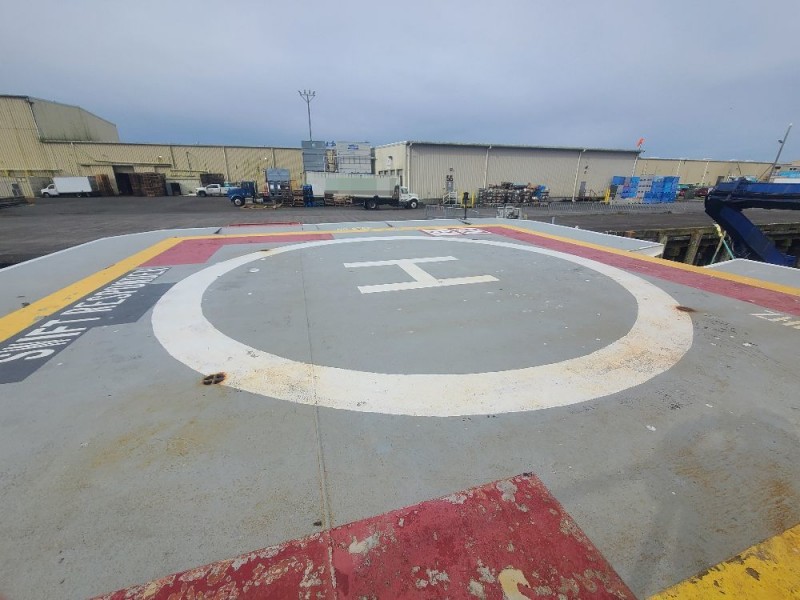

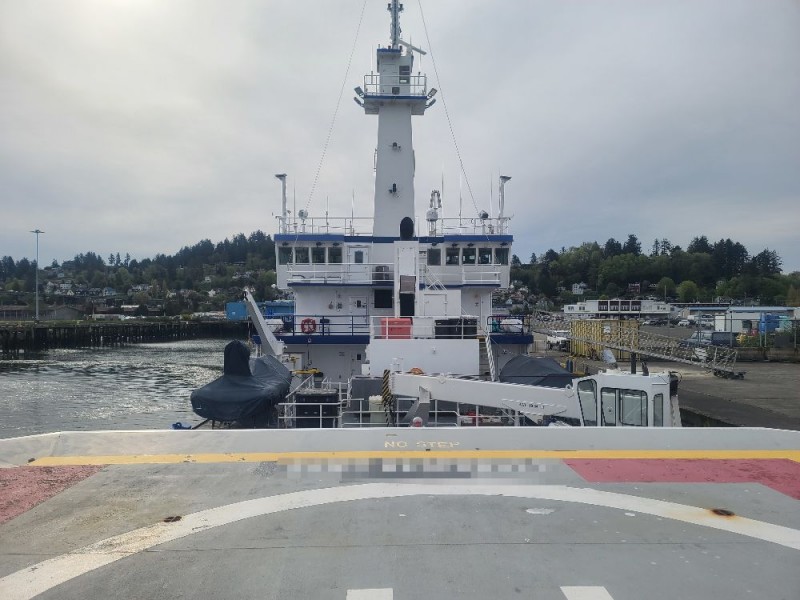

DECK FEATURES

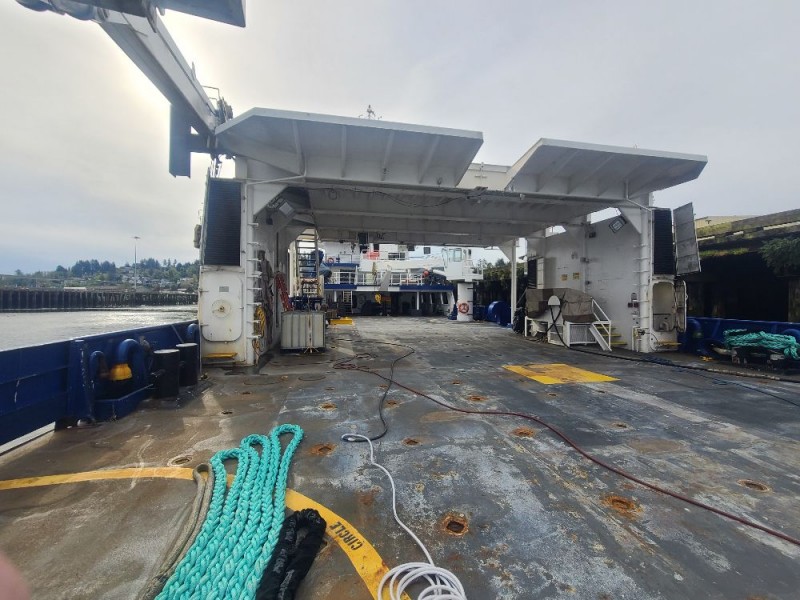

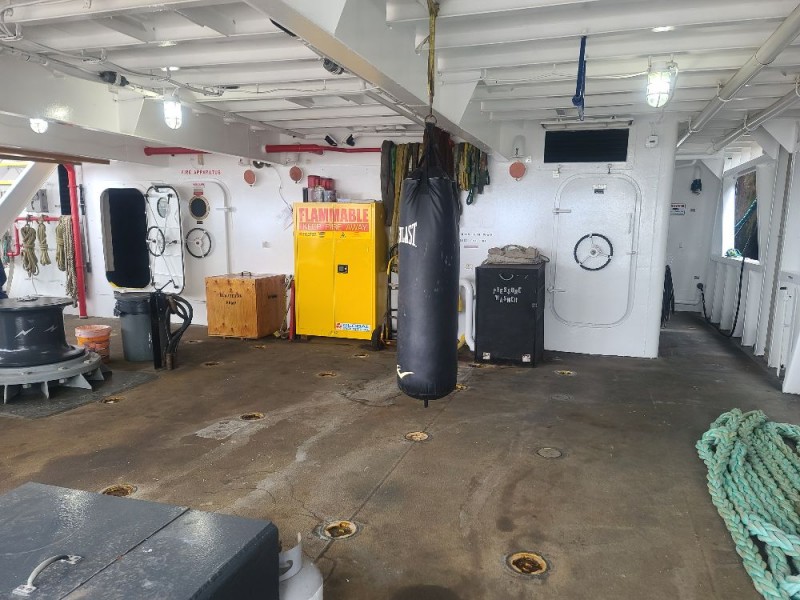

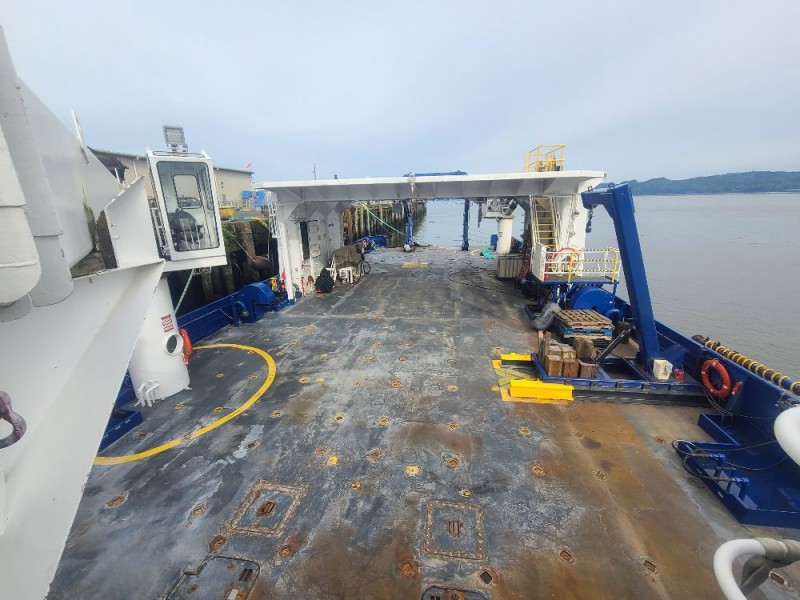

Free Work Deck Space Main Working Deck 4,547.5ft2 (1,386m2) Covered Deck 998.75ft2 (304.42)

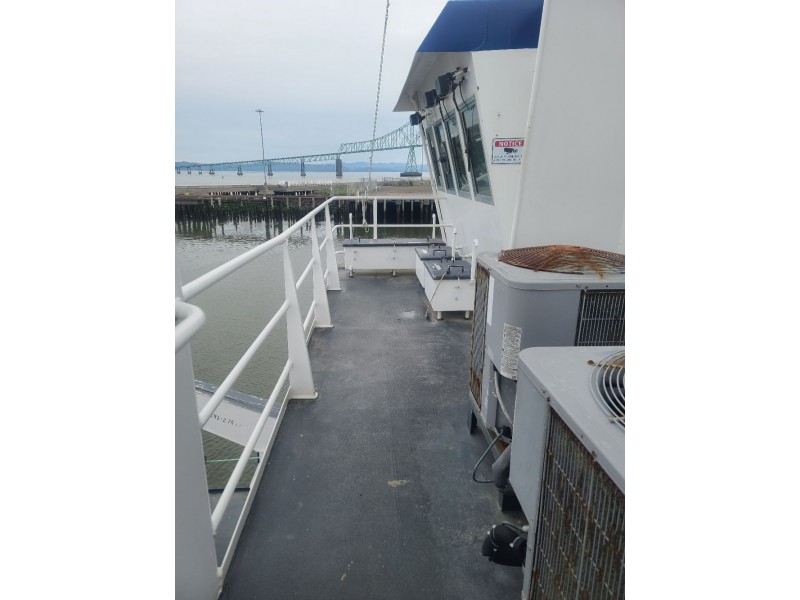

01 Deck 183.75ft2 (56m2)
Total Open Deck 5,730ft2 (1,746.5m2)
Deck Load Main Working Deck 699 LT Maximum Cargo Capacity 699 LT
Deck Tied Down Points Main Deck 237 ea. Peck and Hale tie down points 01 Deck 18 Peck and Hale tie down points

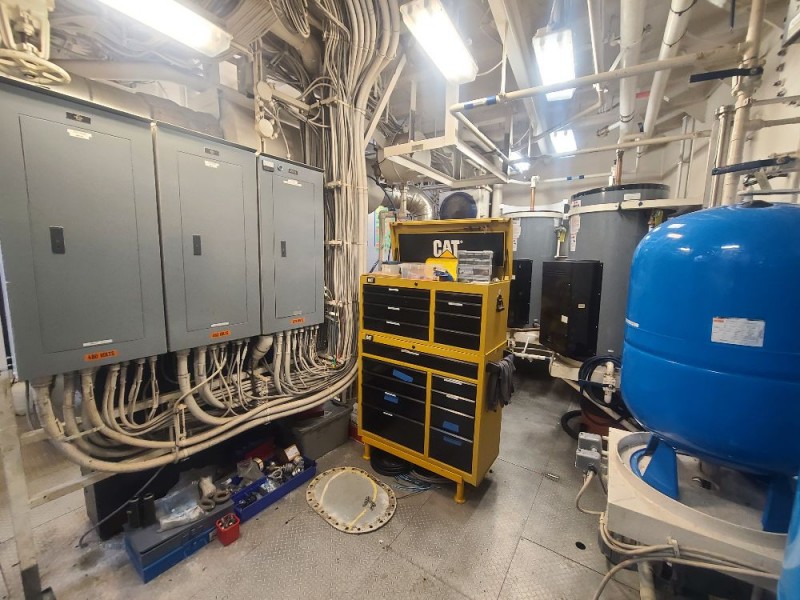

Available Deck Electrical Supply
460 VAC 1 ea. 200 & 1 ea. 100 amp
208 VAC 4 ea. 40 amp
120 VAC Multiple
Deck Hydraulic Connections Multiple Hydraulic connections
Hydraulic Pressure and Volume Working Pressure 3000 PSI with output of up to 70 gpm
Deck Fresh Water Supply 5 ea. 3/4 inch hose connections
Ballast Water 2 ea. 3 inch cam lock
Deck Pressure Washer 1 ea. Portable 2,500 PSI high pressure washer
High Pressure Air 2 ea. Quincy Model QR-25
Model 350 air compressors, each capable of 32 CFM at 150 psi. With – 3/8” ports on deck located at multiple locations

FUEL CONSUMPTION
Fuel Use Transit / Max Speed Marine Diesel 3200 gal/day (12 Cubic Meters) est.
Fuel Use Cruise Marine Diesel 2800 gal/day (10.5) est.
Fuel Use Port 72 gal/day (.275 Cubic Meters)
Fuel Use at Astoria, OR
Home Port Shore Power

TANK CAPACITIES
Marine Diesel 112,890 gal (427 Cubic Meters) 97,575 @ 90%
Ballast Water 161,840 gal (612 Cubic Meters) Lube oil 800 gal (3 Cubic Meters)
Potable Water 20,000 gal (75 Cubic Meters)
Reverse Osmosis Plant 1,500 gal/day
Sewage System MSD Type II
Holding Tank 800 gal

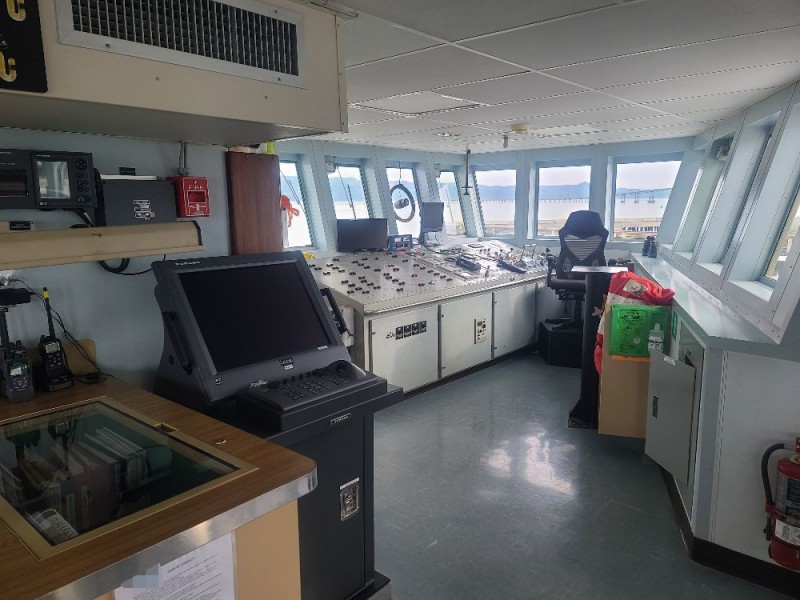

NAVIGATION EQUIPMENT
Radios
2 ea. Furuno 880 Marine VHF Radios and Repeaters
11 Handheld Motorola UHF Radios
Telex 100TRA Airband Radio
Handheld Icom VHF
Furumo MF/HF, Telex, Inmarsat-C
Furumo FA Series SSB
AIS Furumo FA-170 AIS
Navigation Radars Furumo FAR-2827 ARPA Radar X-Band Furumo FAR-2117 ARPA Radar X-Band
Compasses Ritchie Globemaster 6-inch compass
Gyro Sperry Naviknot X MK 1 Digital Gyrocompass
Auto Pilot Sperry Navipilot 4000
Color LCD Echosounder Furuno FCV-295
Deep Water Echosounder Datamarine 3000
Doppler Speed Log Sperry Naviknot and Repeaters
GPS 2 ea. Furuno GPS-150
Temperature Indicator Furuno TI-20 (Sea Temp)
FLIR FLIR M-Series Forward Looking Infrared
Wind Young Mechanical Wind Birds w/Relative and True Eind Displays
Charting System 2 ea. Furuno ECDIS Consoles EC-3000 (Fully Compliant)
Survey System
Subsea Positioning System
Communications GMDSS Fully Compliant
VSAT Iridium
Navtex Furuno Navitex High-frequency, single-side band receivers

SURVEY & DECK EQUIPMENT

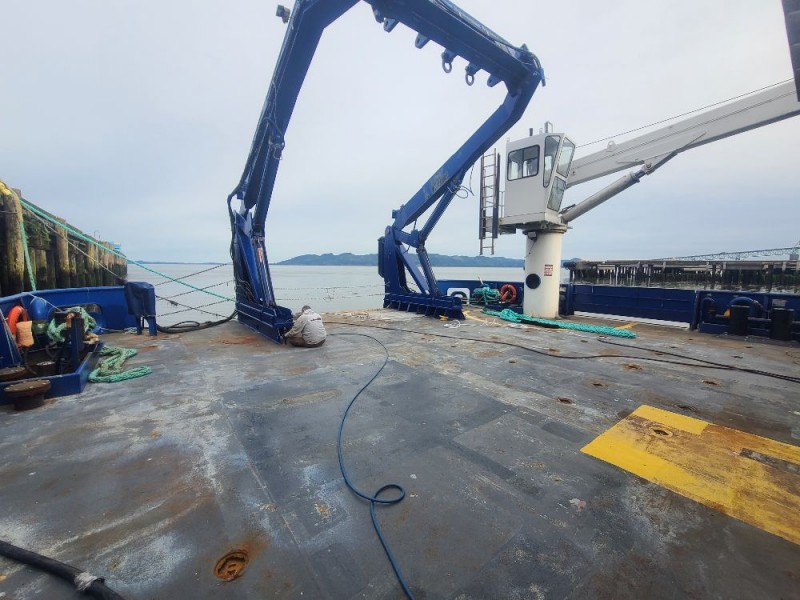

Stern A-Frame w/Multiple Sheave Positions 1 ea. Vessel A-Frame
Tow Static Safe Working Load 20 ton
Dynamic and Lifting Safe Working Load 20 ton
Vertical Clearance 25 ft
Horizontal Clearance 14 ft (4.3m)
Travel 16 ft (4.9m) forward of transom to 9 ft (2.7m) aft of transom
1 ea. Vessel J-Leg
Static Safe Working Load 9,200 lbs (4,173kg) SWL
Dynamic Safe Working Load 9,200 lbs (4,173kg) SWL
Vertical Clearance 17.5 ft (5.3m)
Inboard Reach 5.6ft (1.5m)
Outboard Reach 7.5ft (2.3m)

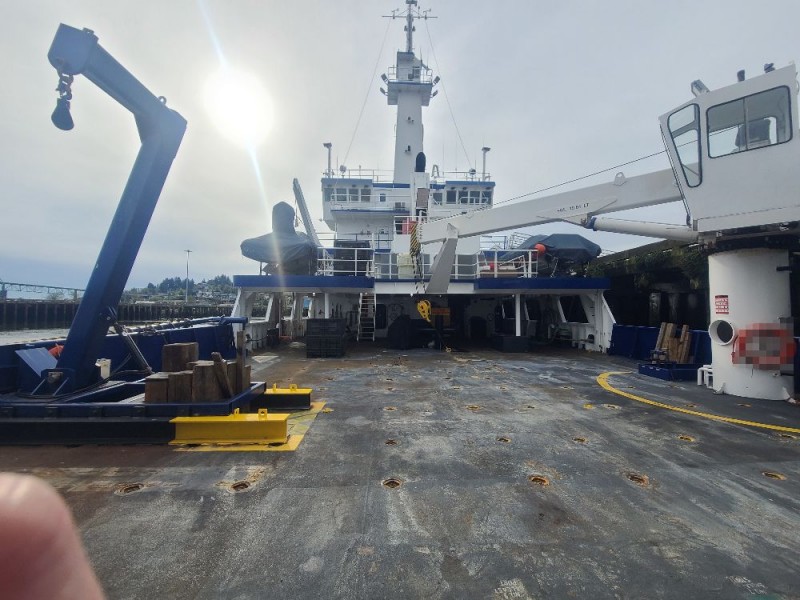

Telescoping Deck Crane 2 ea. 19.65 ton UMOC
Max. Reach 70 ft
Max. Safe Working Load 19.65 tons
Slew Range 340º

Trawl/Survey Winch 01 Deck 1 ea. Dynacon Traction Winch (Skid mounted removable)
Capabilities Capable of Lifting, Towing, Side Scan Sonar or ROV Operations
Wire Capacity 32,810 ft (10,000m) of 9/16” cable or .680 coax or electro/fiber
optic umbilical
Line Pull 30,000 lb (13,608 kg)
Speed 100ft/min (30m/min)
1 ea. Markey DUSH-6 CTD
Wire Capacity 32,810ft (9,100m) (10,000m)
.322” Conductor Wire (CTD) Lebus Grooving
Line Pull 13,734lbs (6,300kg) (6230 kg) bottom layer
Speed 161ft/min (49m/min)
1 ea. Markey DUSH-4
Wire Capacity 24,934ft (7,600m) 0.250” hydrographic wire
Line Pull 11,700lbs (5,307kg) bottom layer
Speed 170ft/min (51.8m/min)
Line pull 5,000lbs (2,268kg)
Low Speed 20ft/min (6m/min)
High Speed 40ft/min (12.2m/min)

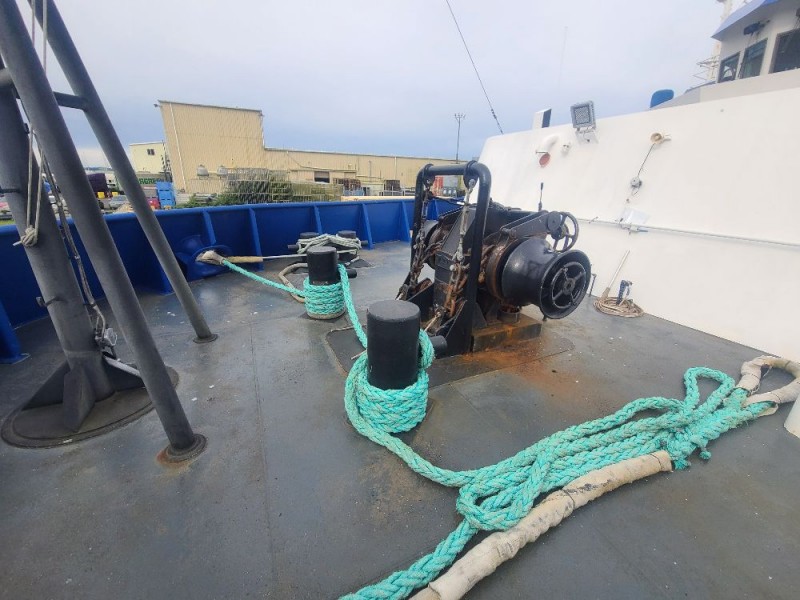

Hydraulic Horizontal Capstan 20,000 lbs.
Static (Bollard) Pull 150,000 lbs.
Nominal Line Speed (FPM) 40ft/min (12.2m/min)
Hydraulic Tugger / Winch 5 ton
10 ton
20 ton

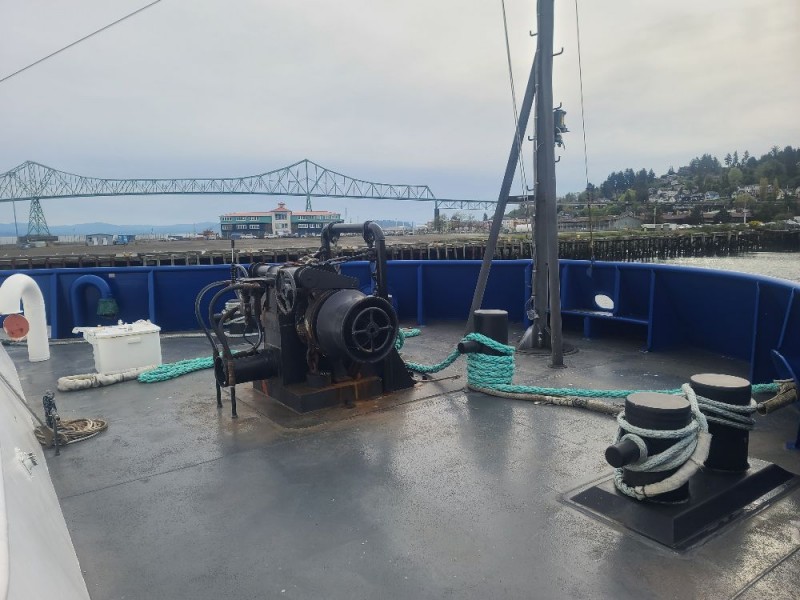

Anchor and Ground Tackle 2 ea. 4,000 lb Navy
Stockless type anchors, 8 shots of chain (720ft)

INTERIOR WORKING SPACES
01 Office/Lab Space 200ft2 (18.6m2)
Conference Room 198ft2 (18.4m2)
All Available Lab Space

ACCOMMODATIONS
Total Number of Cabins 11 ea.
Single Man Staterooms 2 ea.
Two Man Staterooms 4 ea.
Large Cabins 3 ea. x6 man cabins 1 ea. x4 man cabins
Total Number of Berths 38 ea.
Crew 11 ea.
Charterers 25 ea.
Galley Seating for 30
TV Lounge / Conference Room 12 person, 198 sq. ft. conference room with wireless internet access

Office 200sq. ft.
Heads 14 ea. Total
Public Heads w/Showers 2 ea. w/4 showers and 4 toilets
Public Heads wo/Shower 2ea.
Private Heads w/Shower 3ea.
Showers 15 Total
Public Showers 8 ea.
Private Showers 7 ea.
Climate Control Full A/C and heating
Laundry 2 ea. Washer and Dryer

SAFETY
Life Rafts 2 ea. Viking 25 Person Inflatable
Life Rings 13 ea. Life Rings (seven with strobes and two with smoke)
Life Jackets 58 ea. Type I Adult with lights
Immersion Suits 53 ea. Solas 74/96
Mission Support Crafts/Rescue 2 ea. Brunswick 6.5 meter RHIB capable of 40kts.
Fire Protection The vessel has in place a fire Control
System and equipment, including portable and semi-portable fire extinguishers, fire pumps, fire mains, fixed gas extinguishing systems, and all system components installed meet and are in accordance with USCG/ABS
Fire protection includes the following features: a) A self-priming power-driven fire pump connected to a fixed fire main piping system with a sufficient number of hydrants to reach any part of the vessel with a single length of fire hose.
b) OWS, Engine Room
c) Kidde CO2 fixed, gaseous fire extinguishing systems that serve: Paint Locker, OWS Room, and Engine Room
d) A grease extraction hood
e) A fire detection and alarm system or an independent modular smoke detector or fire detecting unit located in each accommodation space.
f) 6 ea. SCBA with firefighting suits
Emergency position- 1 ea. Category 1, 406/121.5 MHz indicating radio beacon float-free automatically activated station (EPIRB) EPIRB detectable by satellite any where in the world and is recognized by GMDSS. The EPIRB is registered per the NOAA Search and Rescue Satellite Aided Tracking (SARSAT)
Other Equipment Redundant steering pumps, 4 fire axes, two bolt cutters, emergency lighting, 8 emergency escape breathing devices, watertight door in
cabin passageway, body basket, backboard, one line thrower, SART, emergency lighting system, and day shapes.
Medical Fully stocked Ships Hospital 1 ea. Eyewash Station – Fixed 1 ea. Chemical Shower Station 1 ea. Automated External Defibrillator (AED) 2 ea. First Aid Stations Medical Advisory Service (MAS)
Vessel Alarm System External siren and flashing light, Monitored
Vessel Video Security System Alert configurations for motion detection and video tampering. Second camera system consists of a Unifi Protect video system with remote viewing capabilities on 4 cameras. 4-day recording capability 24/7 with 4K video.

NETWORK COMMUNICATIONS
Wi-Fi All Decks-Wifi 6-AP’s configurable as needed to each vlan in ships network.
Wi-Fi Network Security WPA2-Wi-Fi Network Security
Ubuiquity Unifi LAN Network High security vlan configurations to isolate various ships networks (corporate, security, guest, and client networks).-Custom networks upon request.
Voice Communications Unifi Talk phone system at key location around vessel. On vessel inter extension dialing and intercom capabilities.
Unlimited incoming and outgoing calling USA destinations. One Iridium Sat phone as backup emergency calling.
Cellular Repeater System Cellular repeater system for enhanced cellular reach near shore. Voice and data compatible with most carriers.
Speed Burstable speeds up to 1.5 Mbps depending on satellite traffic.
Vsat Security Multiple VPN encryption designs to meet requirements.
Video & Data Tricaster 855 16 ch video production
Ship to Shore Communications device-capable of multiple encoding formats to stream to shore over VSAT.
Vessel Video System Ability to monitor from any shore location.
