DO0419
For Sale From Direct Owners
| Reference | DO0419 |

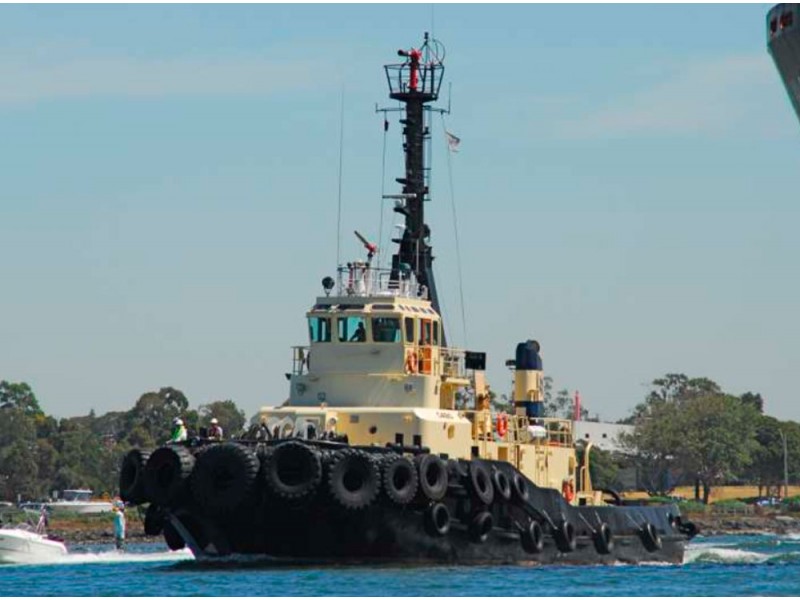

| Type | Tug - ASD |
| Class | LR 100A1 E Towing Service |
| Build year / place | 1982 / AUSTRALIA |
| Length (m) | 34 |
| Breadth (m) / Depth (m) | 10.82 / 5.41 |
| NT (tons) / GT (tons) | 118 / 396 |
| Engine(s) power (BHP) | 3600 |
| Engine(s) | 2 x Daihatsu Diesel 6DSM28 |
| Location | AUSTRALIA |
| Price | 1,700,000 USD |
Interested in this vessel?
Please, feel free to contact us at any time.
We remain at your entire disposal.
Detailed Information
General
| Built Year & Place | 1982 / AUSTRALIA |
| Hull Material | Steel |
| Flag | HONDURAS |
| Class Society and Notation | LR 100A1 E Towing Service + AMS ECCU |
| Next DD | |
| Next SS | |
| Next Annual Survey |
Principle Dimensions
| Length Overall (m) | 34 |
| Length Between Prep. (m) | |
| Breadth (m) | 10.82 |
| Depth (m) | 5.41 |
| Draft (m) | 5.18 |
| NT (tons) | 118 |
| GT (tons) | 396 |
| DWT (tons) |
Machinery & Propulsion
| Total Power Output (BHP) | 3600 |

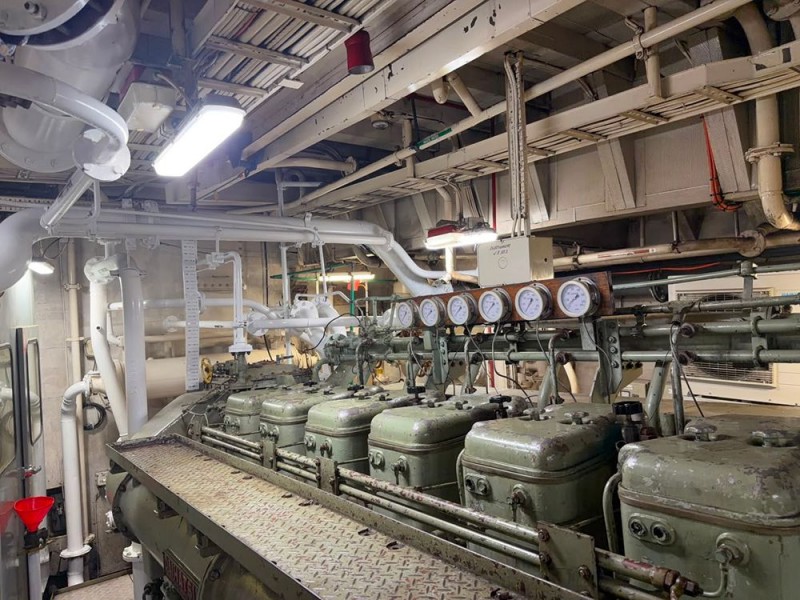

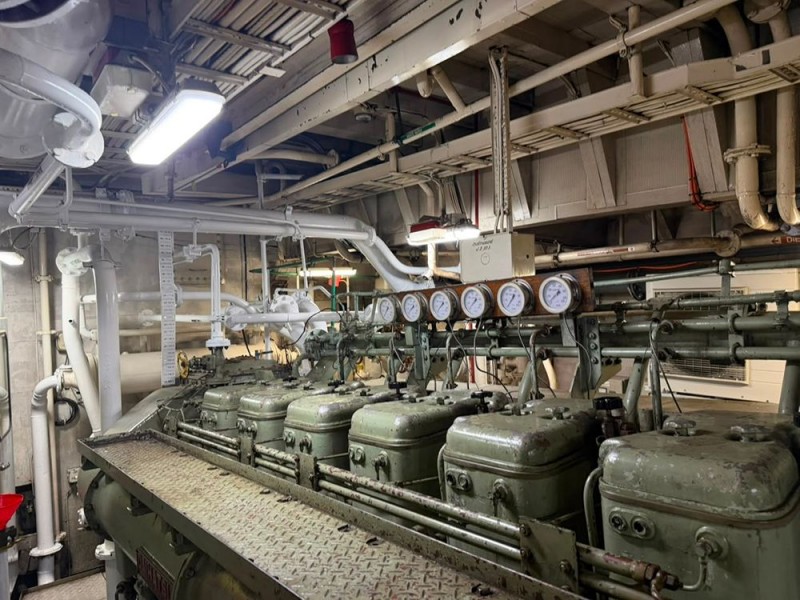

| Main Engine(s) | 2 x Daihatsu Diesel 6DSM28 |
| Main Propulsion System | Azimuth Driven |
| Auxiliary engine(s) | 3 KW , Caterpillar 3306 T |
| Propellers | |
| Speed Maximum (knots) | 12 |
| Speed Cruising (knots) |
Cargo & Tank Capacities
| Deck Cargo (tons) | |
| Deck Area (m2) | |
| Deck Load (tons/m2) | |
| Fuel Tanks Capacity (m3) | |
| Fresh Water Tanks Capacity (m3) | |
| Ballast Tanks Capacity (m3) |
Additional Information
Length Waterline 32.47 Metres
Clear Deck Space 16 Square metres @2 tonnes per sq m.
Bollard pull ahead 50 metric tonnes
Bollard pull astern 46 metric tonnes
Accommodation 14 berths 8 cabins
Freshwater 70 mt, Water generator 500 ltrs/day
Fuel 226 mt
Foam 13 mt

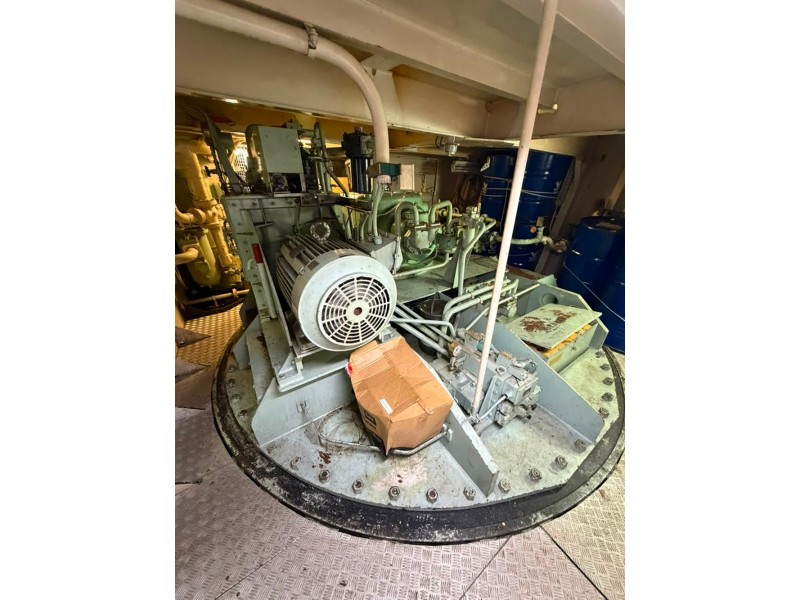

Propulsion
Number 2
Type Z Pellor
Manufacturer Niigata
Model number ZP-3B
Propeller diameter 2200 millimetres
Propeller speed 265 RPM
Auxiliary engines
Model number 3306 T
Continuous rating 125 KW KVA
415 v 3 phase 50 Hz
Speed 1500 RPM
Towing

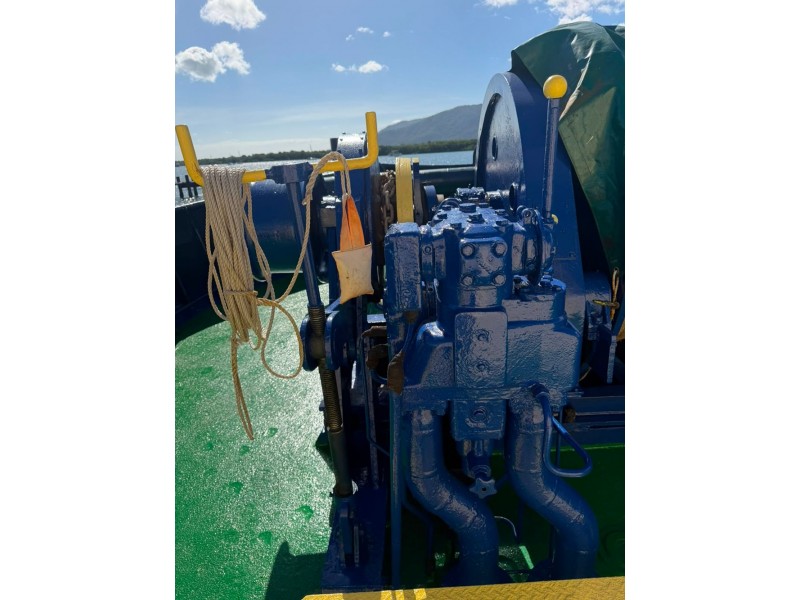

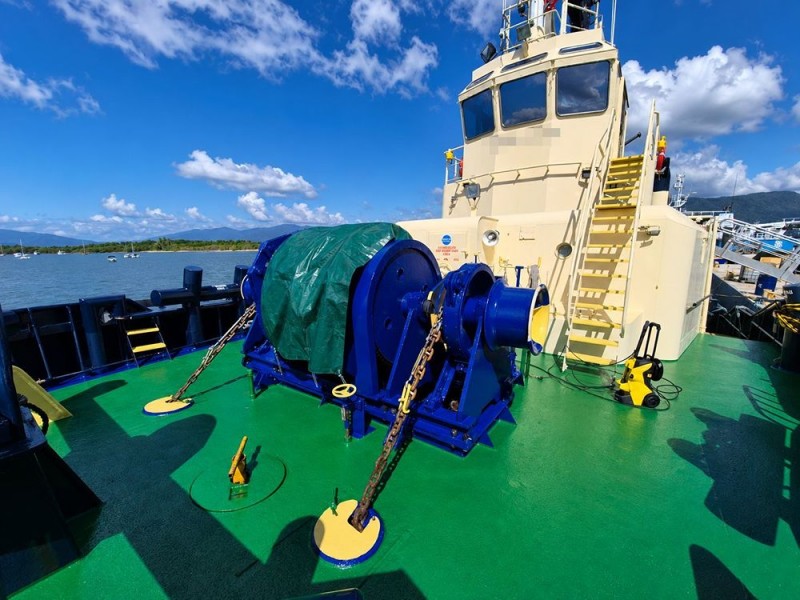

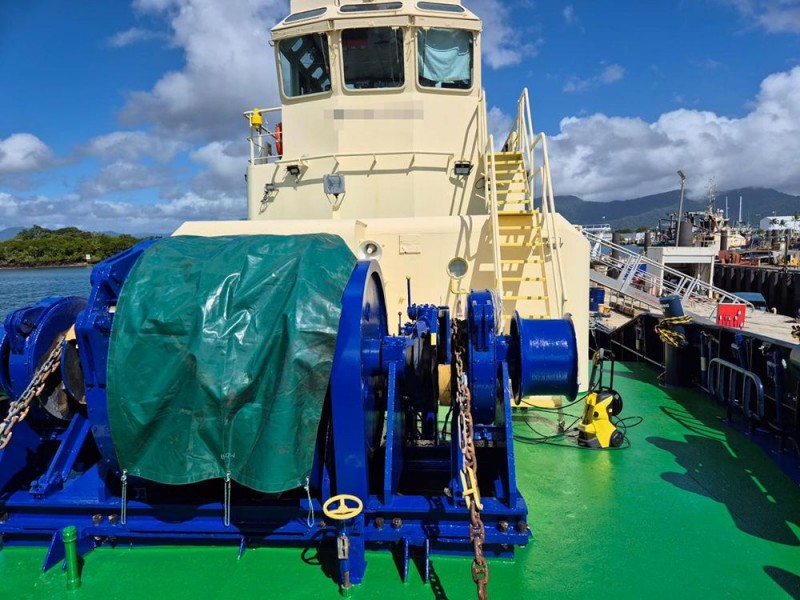

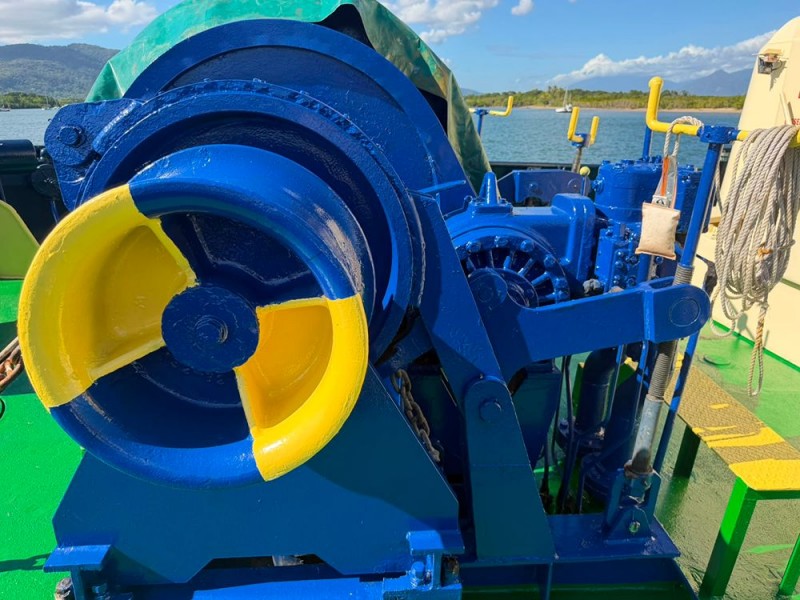

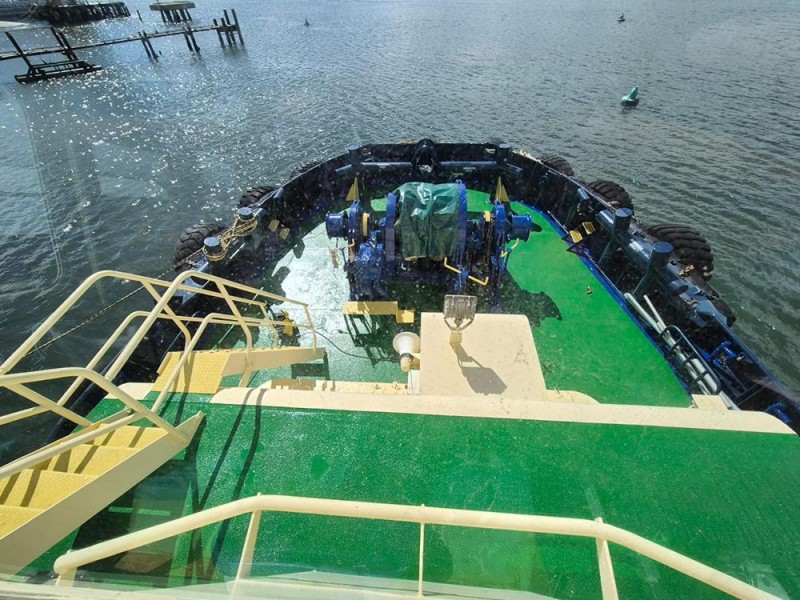

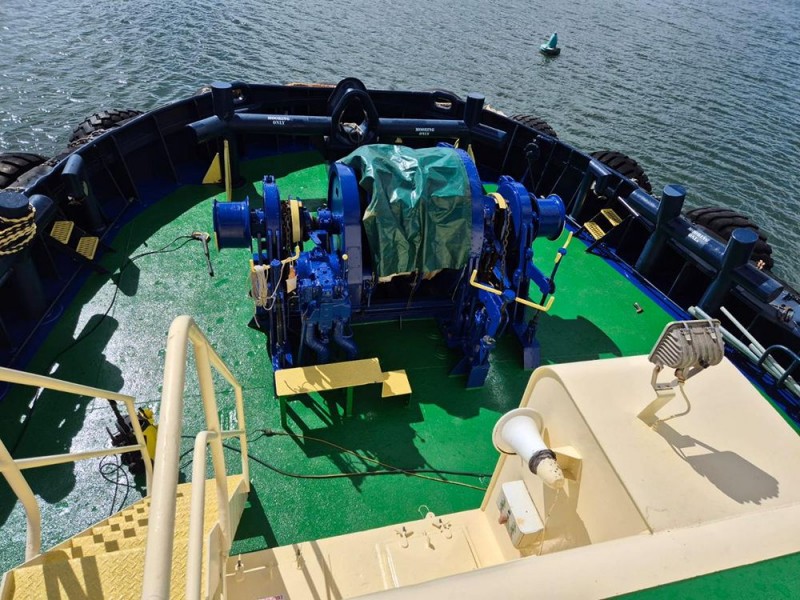

Winch Fwd Norwinch low-pressure hydraulic single drum
Winch Aft Norwich S-30-IT, 600 m Wire.
Tugger winch NA
Bridle winch NA

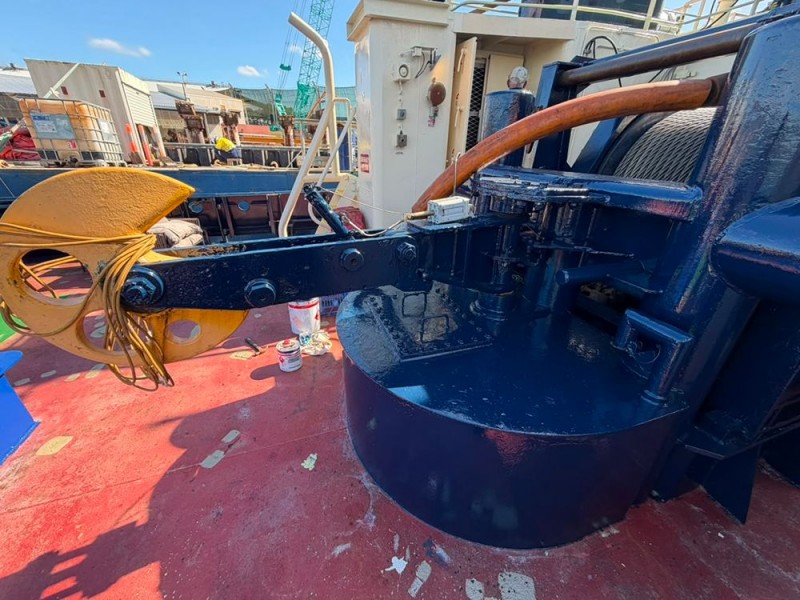

Towing hook Yes
Deck equipment Crane

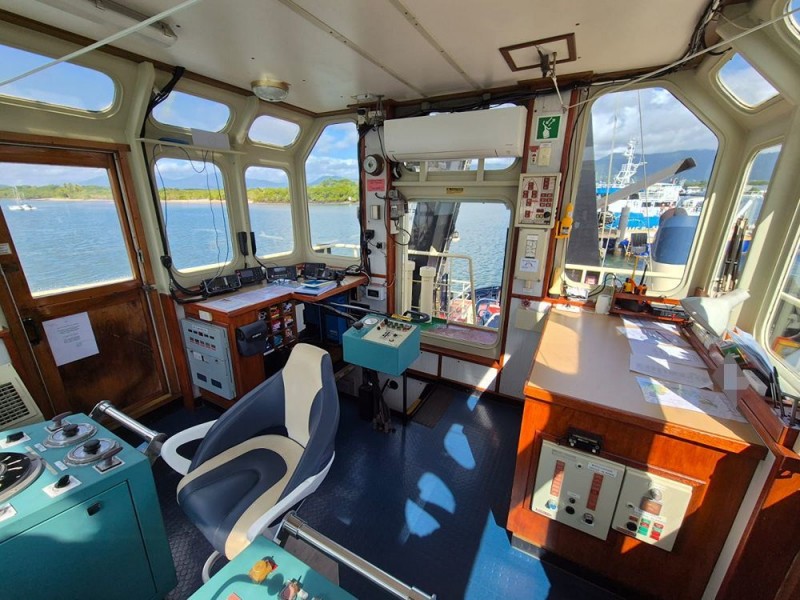

Navigation
Magnetic compass Sestral Deadbeat 90426
Gyro Compass Tokyo Keiki Model ES-76, SIMRAD JLR21
Satellite Communication 2 x IRIDIUM LT – 4100S GMDSS A3, STARLINK
GPS NAVMAN 5507, SIMRAD – JLR21, NSR NGR-3000 GPS
Radar Koden MDC – 7912P
Echo sounder ELAC-L AZ 51
Auto pilot Decca 450
Communication
GMDSS area A3
VHF, MF/HF, IRIDIUM VHF ICOM GM600, GM800, IRIDIUM LT-4100S
Other

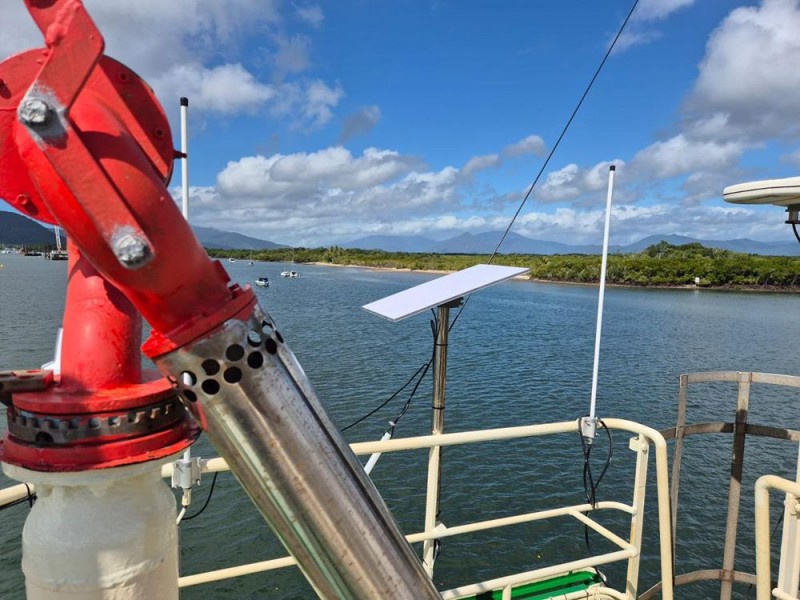

Fire Fighting equipment fire pump: Caterpillar 3412 main monitor: SKUM MK-150 EL secondary SKUM MK-80
Deck crane AMCO MARINE VEBA 604TM 3S, SWL 2t
MOB boat NA
Salvage equipment 2 four in line hose manifolds to suit 62.5mm diameter fire hoses, self protection spray, spare towing wire 300m
Oil Dispersal NA
Search lights 2 one facing fwd, one facing aft.
All details are given in good faith and are believed to be accurate but no warranty of accuracy or completeness or suitability for purpose is either stated or implied. Prices are subject to change without notice.
